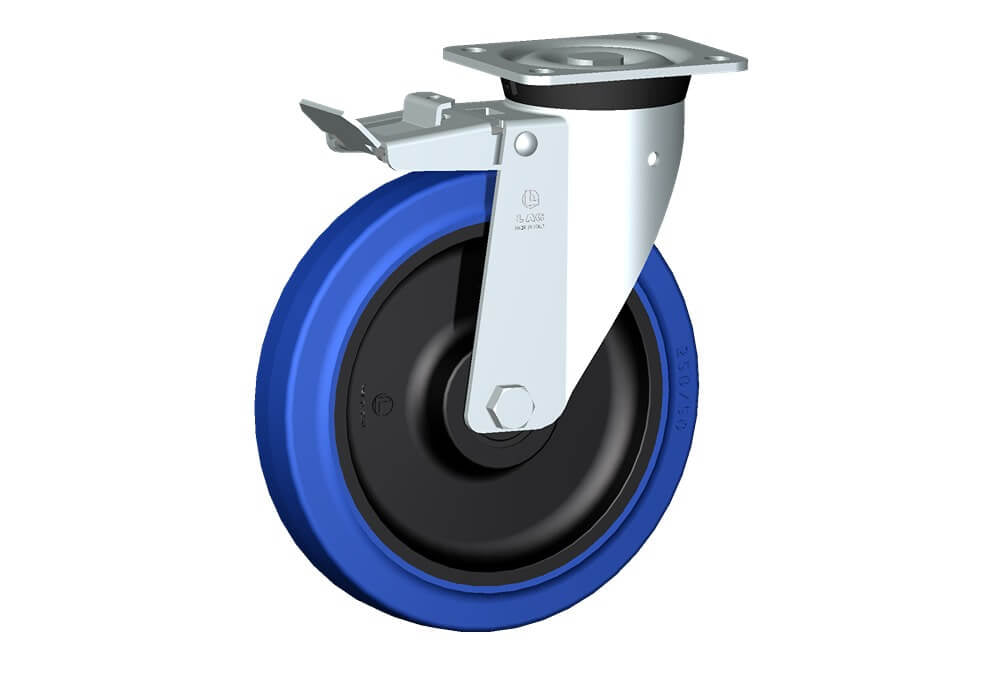

WHEEL LB 250X50/60 ROLLER BRGS SWIVEL FORK M40 + BRAKE

WHEEL LB 250X50/60 ROLLER BRGS SWIVEL FORK M40 + BRAKE

31649BFR

Enquire Now

Wheels with black polyamide 6 centre, blue elastic non-marking rubber mould-on solid tyre available with ball bearings, standard or stainless steel roller bearings od plain bore.Wheel fitted with standard roller bearing.

View full details
Wheel diameterD250 mm
Tyre widthE50 mm
Overall heightH304 mm
Top plate outer dimensionsAxB135x110 mm
Bolt hole spacingaxb105x75 mm
Bolt hole spacingaxb105x80 mm
Fixing bolt diametergM12
OffsetF69 mm
Load Capacity450 kg
