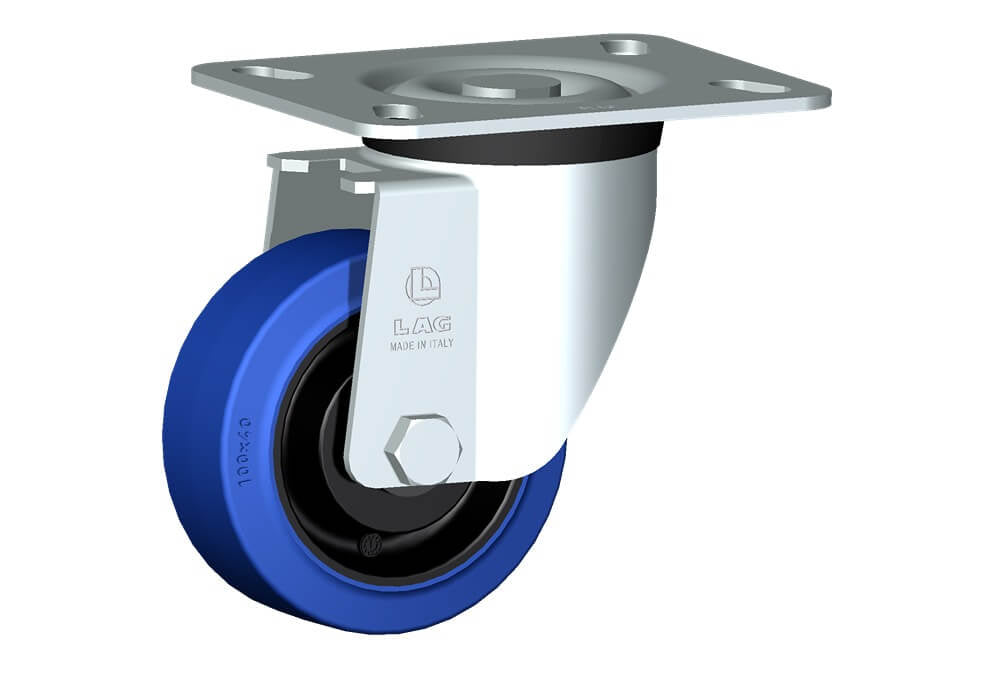

WHEEL LB 100X40/40 ROLLER BEARING SWIVEL FORK M40/50

WHEEL LB 100X40/40 ROLLER BEARING SWIVEL FORK M40/50

31629B

Enquire Now

Wheels with black polyamide 6 centre, blue elastic non-marking rubber mould-on solid tyre available with ball bearings, standard or stainless steel roller bearings od plain bore.Wheel fitted with standard roller bearing.

View full details
Wheel diameterD100 mm
Tyre widthE40 mm
Overall heightH137 mm
Top plate outer dimensionsAxB135x110 mm
Bolt hole spacingaxb96x56 mm
Bolt hole spacingaxb105x75 mm
Bolt hole spacingaxb105x80 mm
Fixing bolt diametergM10
OffsetF41 mm
Load Capacity150 kg
