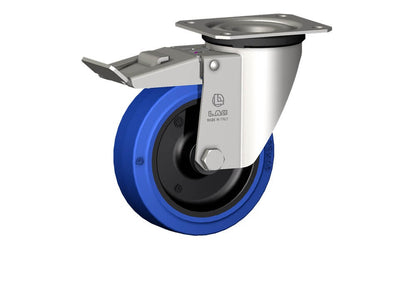

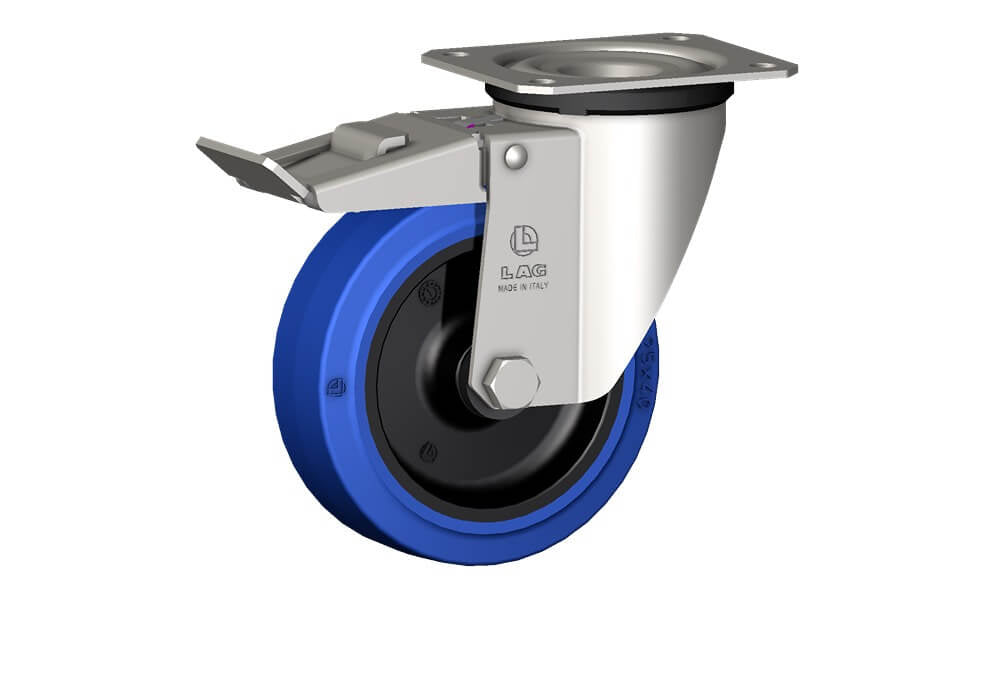

WHEEL LB 125X40/40 PLAIN BORE SWIVEL FORK X20L/50 + BRAKE

WHEEL LB 125X40/40 PLAIN BORE SWIVEL FORK X20L/50 + BRAKE

31128BFR

Enquire Now

Wheels with black polyamide 6 centre, blue elastic non-marking rubber mould-on solid tyre available with ball bearings, standard or stainless steel roller bearings od plain bore.Plain bore wheel.

View full details
Wheel diameterD125 mm
Tyre widthE40 mm
Overall heightH159 mm
Top plate outer dimensionsAxB102x83 mm
Bolt hole spacingaxb80x60 mm
Fixing bolt diametergM8
OffsetF49 mm
Load Capacity200 kg
