LAG

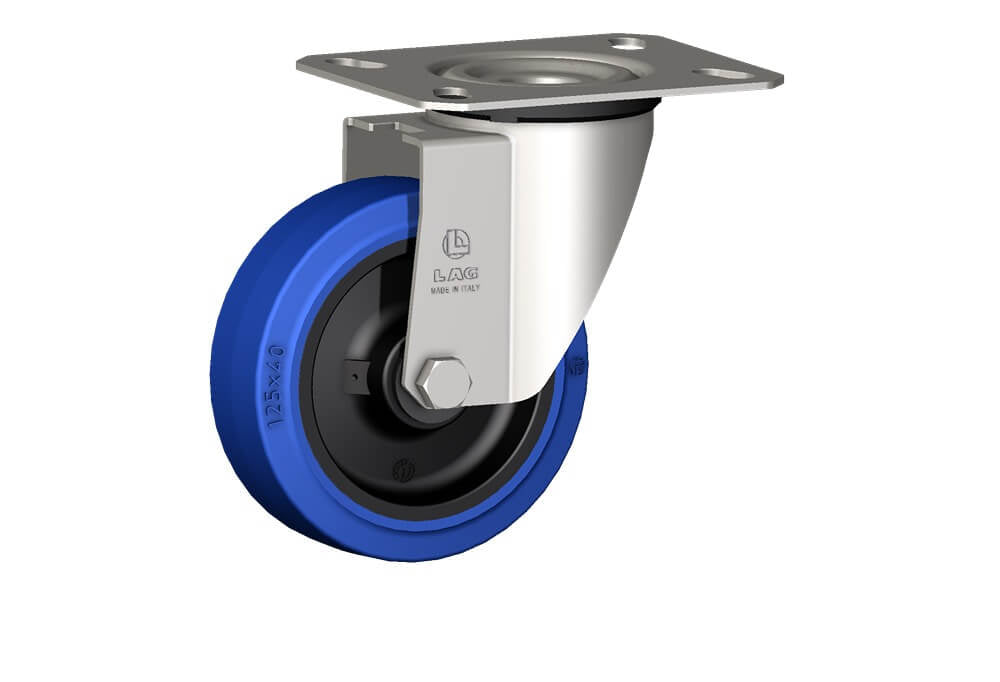

WHEEL LB 125X40/40 RBX SWL X20/50

Name: WHEEL LB 125X40/40 RBX SWL X20/50
Brand: LAG
SKU: 31059B
Availability: InStock

WHEEL LB 125X40/40 RBX SWL X20/50

SKU:31059B

Wheels with black polyamide 6 centre, blue elastic non-marking rubber mould-on solid tyre available with ball bearings, standard or stainless steel roller bearings od plain bore.Wheel fitted with stainless steel roller bearing.

View full details

Wheel diameter	D	125 mm
Tyre width	E	40 mm
Overall height	H	159 mm
Top plate outer dimensions	AxB	135x110 mm
Bolt hole spacing	axb	96x56 mm
Bolt hole spacing	axb	105x75 mm
Bolt hole spacing	axb	105x80 mm
Fixing bolt diameter	g	M10
Offset	F	49 mm
Load Capacity		200 kg
