LAG

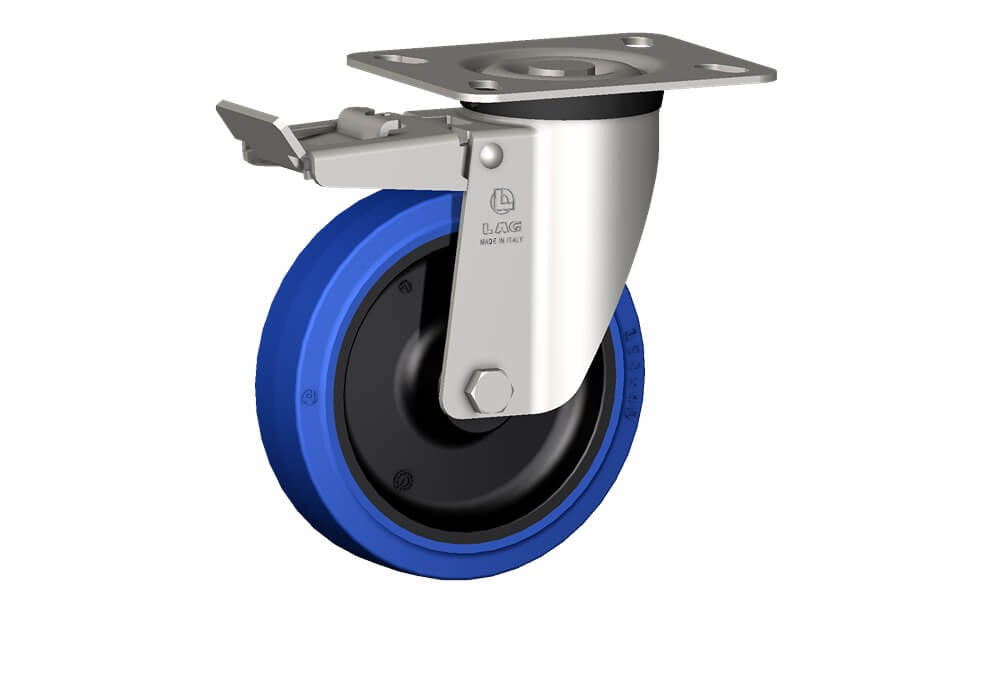

WHEEL LB 150X40/50 PLAIN BORE SWIVEL FORK X40 + BRAKE

Name: WHEEL LB 150X40/50 PLAIN BORE SWIVEL FORK X40 + BRAKE
Brand: LAG
SKU: 30863BFR
Availability: InStock

WHEEL LB 150X40/50 PLAIN BORE SWIVEL FORK X40 + BRAKE

SKU:30863BFR

Enquire Now

Wheels with black polyamide 6 centre, blue elastic non-marking rubber mould-on solid tyre available with ball bearings, standard or stainless steel roller bearings od plain bore.Plain bore wheel.

View full details

Wheel diameter	D	150 mm
Tyre width	E	40 mm
Overall height	H	192 mm
Top plate outer dimensions	AxB	135x110 mm
Bolt hole spacing	axb	96x56 mm
Bolt hole spacing	axb	105x75 mm
Bolt hole spacing	axb	105x80 mm
Fixing bolt diameter	g	M10
Offset	F	49 mm
Load Capacity		240 kg
