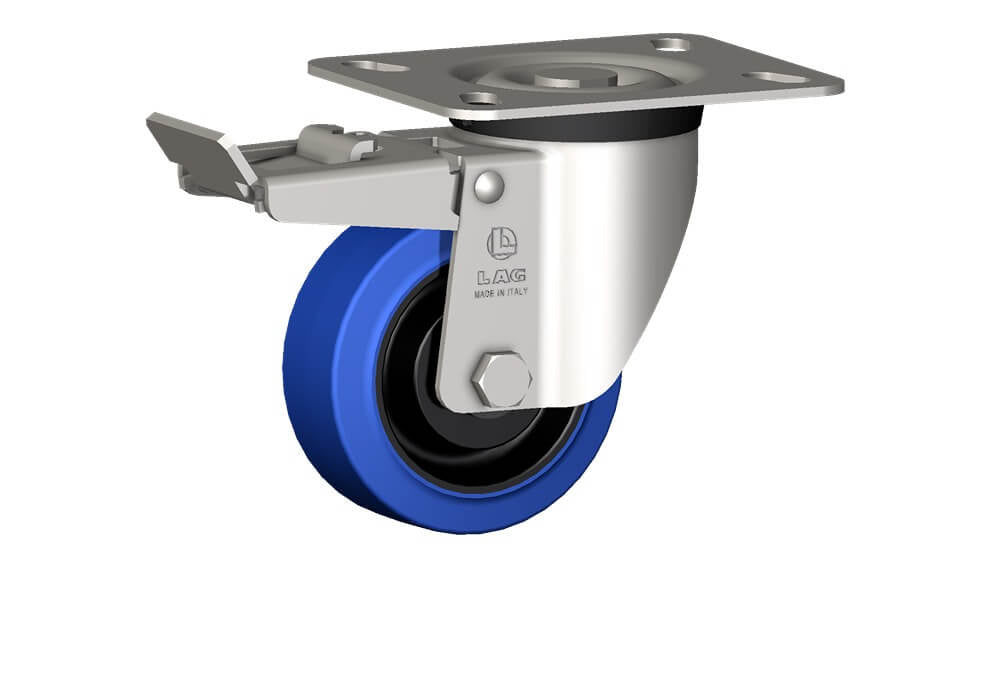

WHEEL LB 100X40/40 RBX SWV X40/50 +BRAKE

WHEEL LB 100X40/40 RBX SWV X40/50 +BRAKE

30829BFR

Enquire Now

Wheels with black polyamide 6 centre, blue elastic non-marking rubber mould-on solid tyre available with ball bearings, standard or stainless steel roller bearings od plain bore.Wheel fitted with stainless steel roller bearing.

View full details
Wheel diameterD100 mm
Tyre widthE40 mm
Overall heightH137 mm
Top plate outer dimensionsAxB135x110 mm
Bolt hole spacingaxb96x56 mm
Bolt hole spacingaxb105x75 mm
Bolt hole spacingaxb105x80 mm
Fixing bolt diametergM10
OffsetF42 mm
Load Capacity150 kg
