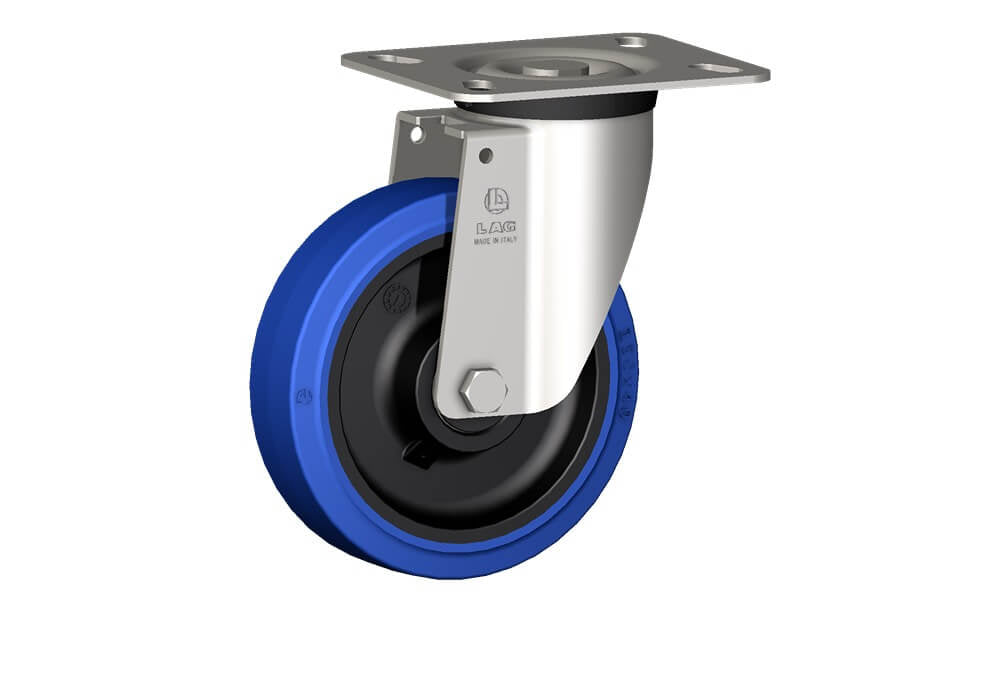

WHEEL LB 150X40/50 INOX BB SWIVEL X40+ BRAKE

WHEEL LB 150X40/50 INOX BB SWIVEL X40+ BRAKE

30813B

Enquire Now

Wheels with black polyamide 6 centre, blue elastic non-marking rubber mould-on solid tyre available with ball bearings, standard or stainless steel roller bearings od plain bore.Wheel fitted with precision stainless steel ballbearings, sealed (2RS).

View full details
Wheel diameterD150 mm
Tyre widthE40 mm
Outer faces bearings distanceV48 mm
Overall heightH192 mm
Top plate outer dimensionsAxB135x110 mm
Bolt hole spacingaxb96x56 mm
Bolt hole spacingaxb105x75 mm
Bolt hole spacingaxb105x80 mm
Fixing bolt diametergM10
OffsetF49 mm
Load Capacity240 kg
