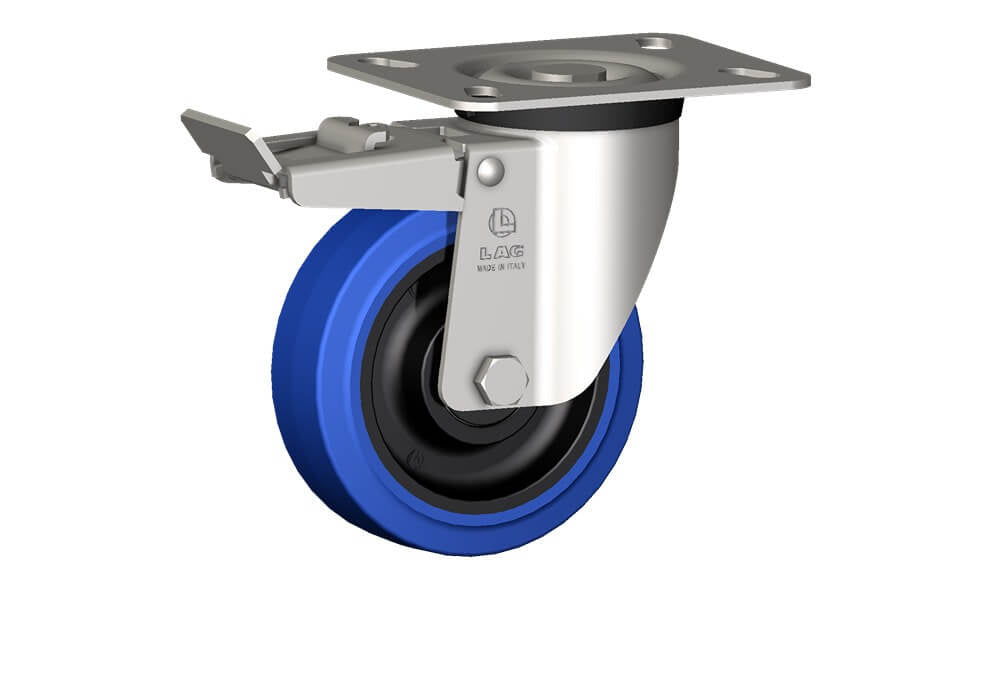

RUOTA LB 125X40/40 CCX SPG X40/50 +FR

RUOTA LB 125X40/40 CCX SPG X40/50 +FR

30809BFR

Enquire Now

Wheels with black polyamide 6 centre, blue elastic non-marking rubber mould-on solid tyre available with ball bearings, standard or stainless steel roller bearings od plain bore.Wheel fitted with precision stainless steel ballbearings, sealed (2RS).

View full details
Wheel diameterD125 mm
Tyre widthE40 mm
Outer faces bearings distanceV38 mm
Overall heightH161 mm
Top plate outer dimensionsAxB135x110 mm
Bolt hole spacingaxb96x56 mm
Bolt hole spacingaxb105x75 mm
Bolt hole spacingaxb105x80 mm
Fixing bolt diametergM10
OffsetF42 mm
Load Capacity200 kg
