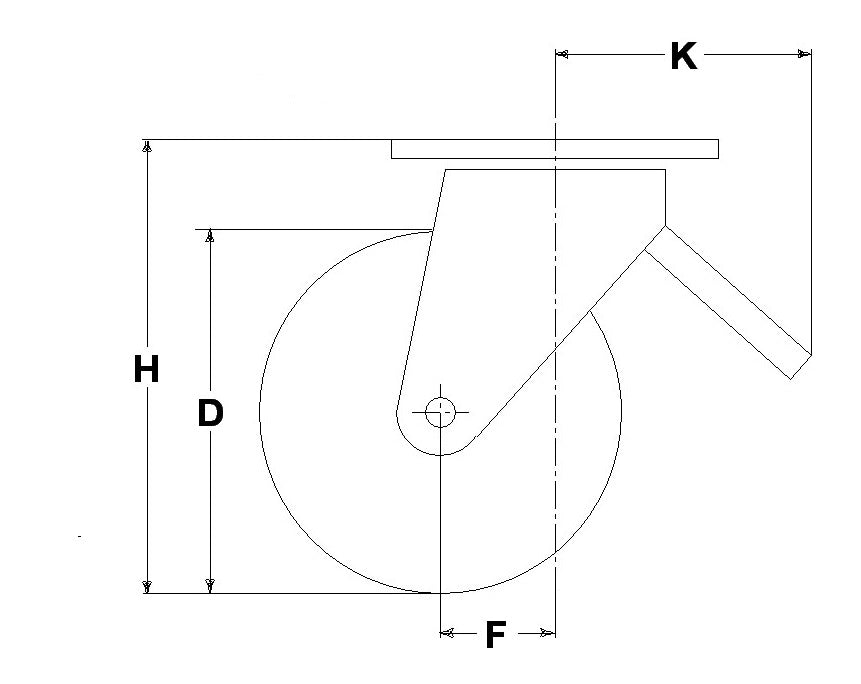

| Wheel diameter | D | 250 mm |
| Tyre width | E | 60 mm |
| Outer faces bearings distance | V | 56 mm |
| Overall height | H | 304 mm |

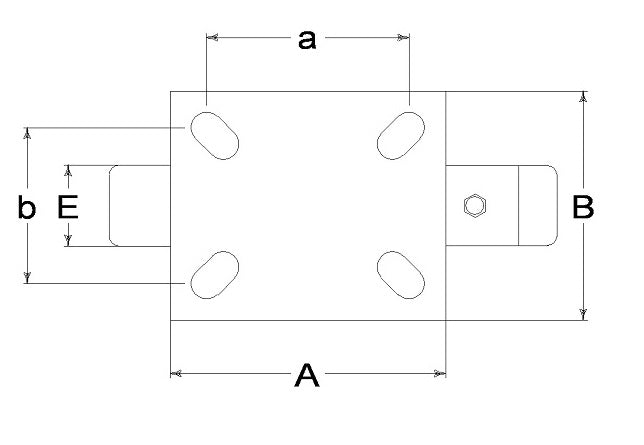

| Top plate outer dimensions | AxB | 135x110 mm |
| Bolt hole spacing | axb | 105x75 mm |
| Bolt hole spacing | axb | 105x80 mm |
| Fixing bolt diameter | g | M12 |
| Offset | F | 71 mm |
| Load Capacity | 800 kg |
