LAG

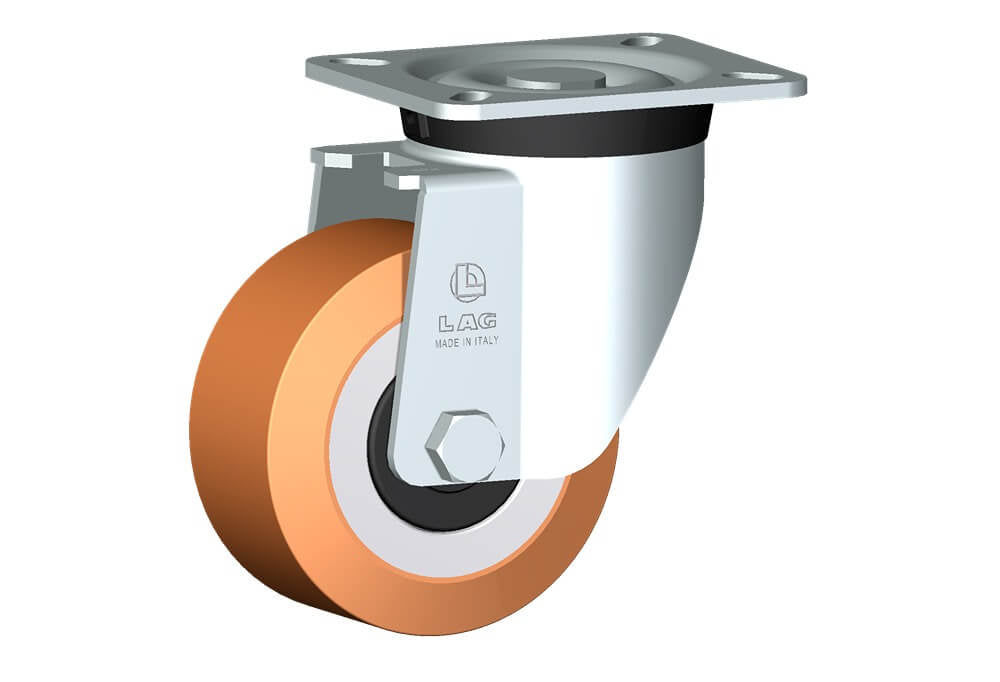

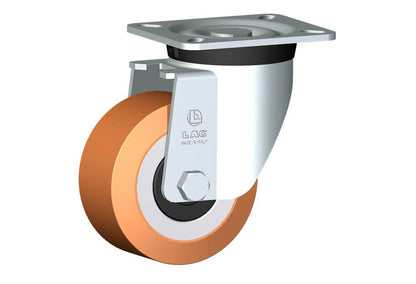

WHEEL Z 100X50/50 BB SWL FORK P60L

Name: WHEEL Z 100X50/50 BB SWL FORK P60L
Brand: LAG
SKU: 23855
Availability: InStock

WHEEL Z 100X50/50 BB SWL FORK P60L

SKU:23855

Cast iron wheels with polyurethane coating 95 Sh.A available with shielded precision ball bearings.Wheel fitted with ball bearings.Steel wheel centre.

View full details

Wheel diameter	D	100 mm
Tyre width	E	50 mm
Outer faces bearings distance	V	44 mm
Overall height	H	137 mm
Top plate outer dimensions	AxB	105x85 mm
Bolt hole spacing	axb	76x55 mm
Bolt hole spacing	axb	80x60 mm
Fixing bolt diameter	g	M8
Offset	F	42 mm
Load Capacity		450 kg
