LAG

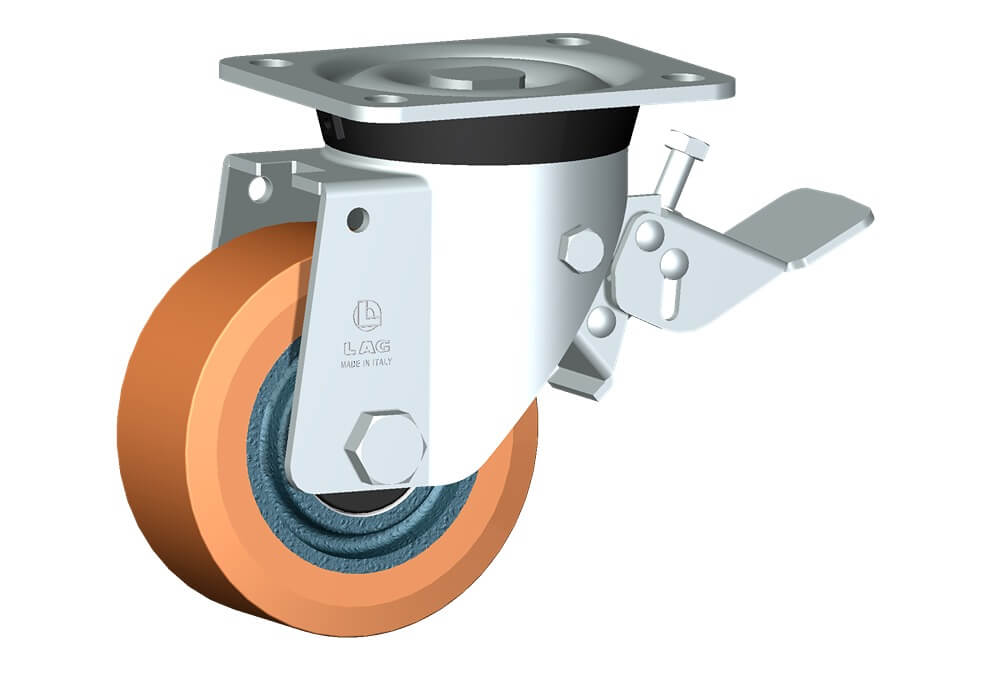

WHEEL Z 125X50/50 BB SWIVEL FORK M40/60 + BRAKE

SKU:23611FV

Cast iron wheels with polyurethane coating 95 Sh.A available with shielded precision ball bearings.Wheel fitted with ball bearings.

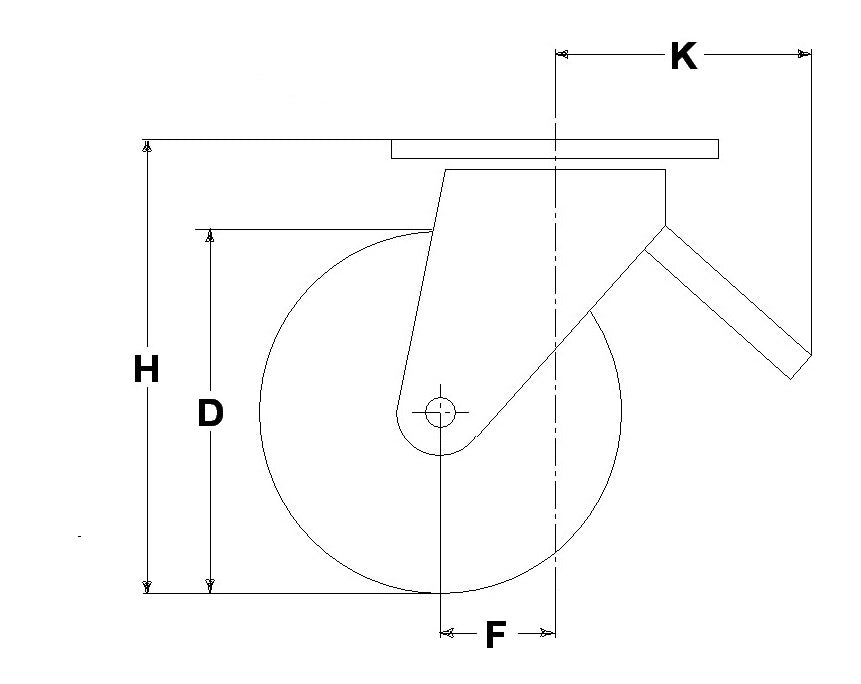

Wheel diameter	D	125 mm
Tyre width	E	50 mm
Outer faces bearings distance	V	44 mm
Overall height	H	172 mm

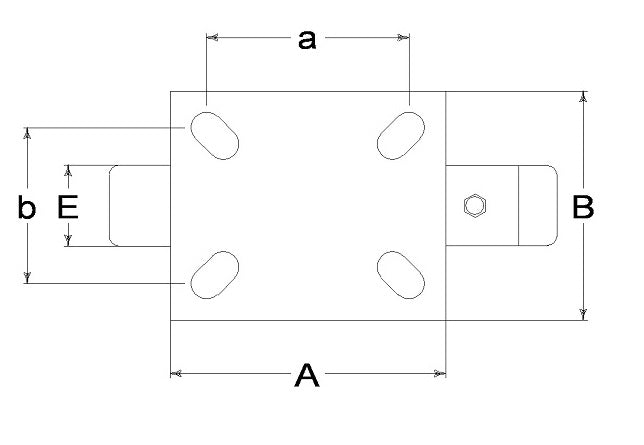

Top plate outer dimensions	AxB	135x110 mm
Bolt hole spacing	axb	105x75 mm
Bolt hole spacing	axb	105x80 mm
Fixing bolt diameter	g	M12
Offset	F	52 mm
Load Capacity		450 kg
