LAG

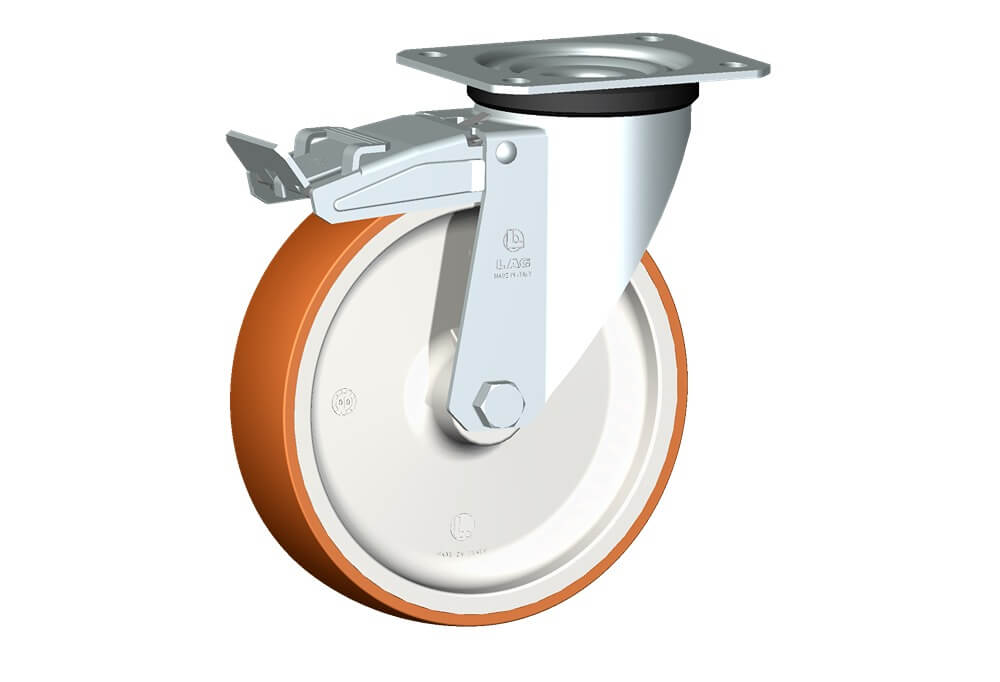

WHEEL N 200X50/60 PLAIN BORE SWIVEL FORK M22 + BRAKE

WHEEL N 200X50/60 PLAIN BORE SWIVEL FORK M22 + BRAKE

22067FR

Enquire Now

Wheels with injected polyurethane coating 58 Sh.D on polyamide 6 center. Available with standard shielded or stainless steel sealed precision ball bearings; standard or stainless steel roller bearings; plain bore.Plain bore wheel.

View full details
Wheel diameterD200 mm
Tyre widthE50 mm
Overall heightH240 mm
Top plate outer dimensionsAxB135x110 mm
Bolt hole spacingaxb105x75 mm
Bolt hole spacingaxb105x80 mm
Fixing bolt diametergM10
OffsetF59 mm
Load Capacity300 kg
