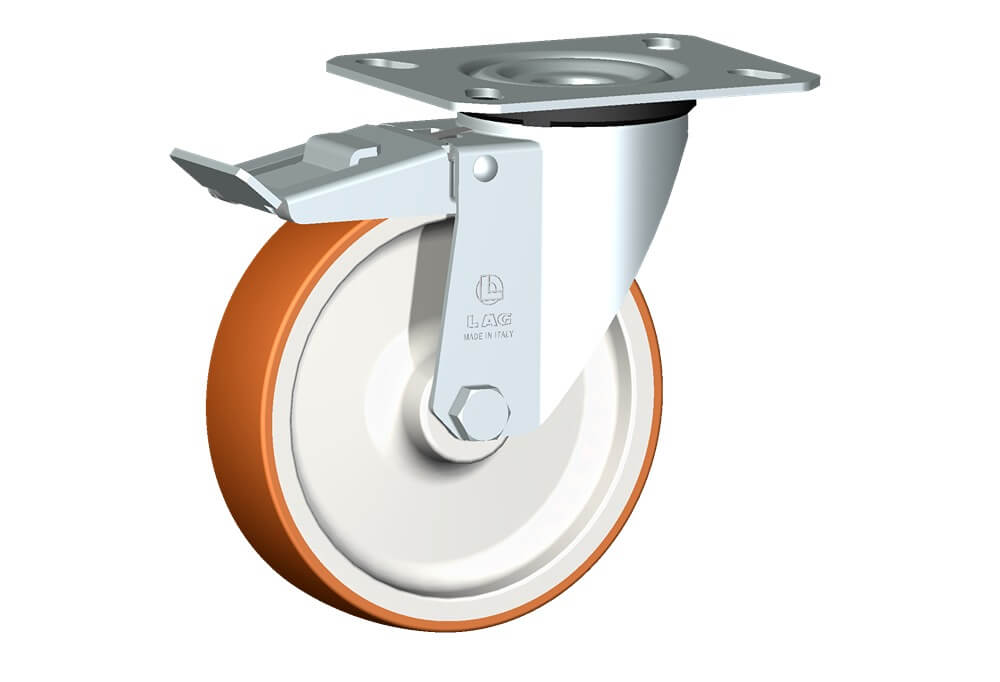

WHEEL N 150X40/50 PLAIN BORE SWIVEL FORK M22 + BRAKE

WHEEL N 150X40/50 PLAIN BORE SWIVEL FORK M22 + BRAKE

22061FR

Enquire Now

Wheels with injected polyurethane coating 58 Sh.D on polyamide 6 center. Available with standard shielded or stainless steel sealed precision ball bearings; standard or stainless steel roller bearings; plain bore.Plain bore wheel.

View full details
Wheel diameterD150 mm
Tyre widthE40 mm
Overall heightH181 mm
Top plate outer dimensionsAxB135x110 mm
Bolt hole spacingaxb96x56 mm
Bolt hole spacingaxb105x75 mm
Bolt hole spacingaxb105x80 mm
Fixing bolt diametergM10
OffsetF51 mm
Load Capacity200 kg
