LAG

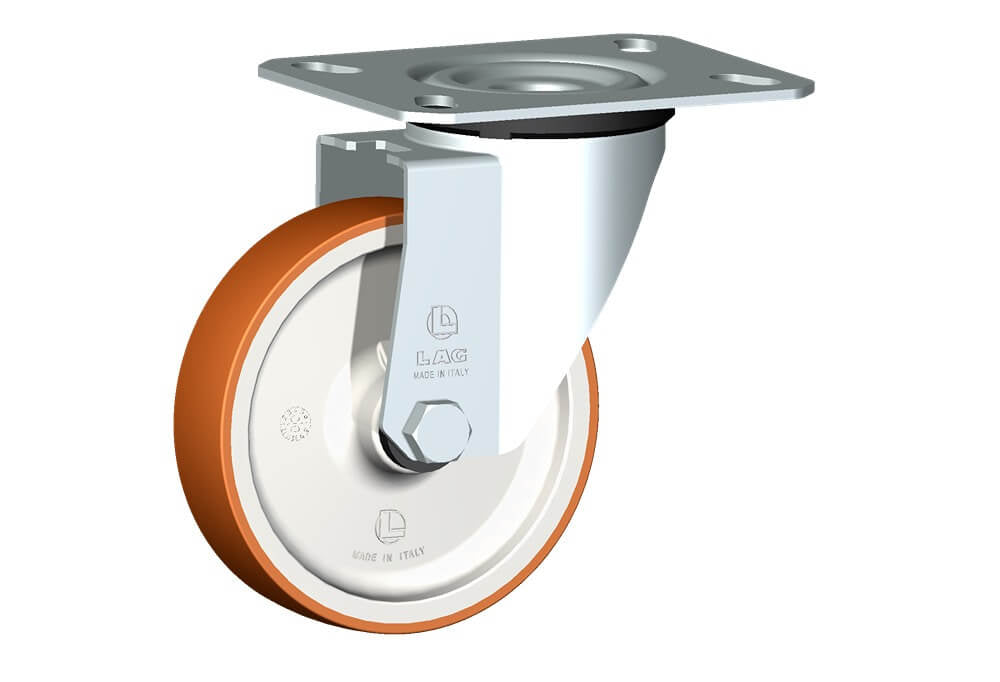

WHEEL N 125X30/40 PLAIN BORE SWIVEL FORKM22/50

Name: WHEEL N 125X30/40 PLAIN BORE SWIVEL FORKM22/50
Brand: LAG
SKU: 22058
Availability: InStock

WHEEL N 125X30/40 PLAIN BORE SWIVEL FORKM22/50

SKU:22058

Wheels with injected polyurethane coating 58 Sh.D on polyamide 6 center. Available with standard shielded or stainless steel sealed precision ball bearings; standard or stainless steel roller bearings; plain bore.Plain bore wheel.

View full details

Wheel diameter	D	125 mm
Tyre width	E	30 mm
Overall height	H	159 mm
Top plate outer dimensions	AxB	135x110 mm
Bolt hole spacing	axb	96x56 mm
Bolt hole spacing	axb	105x75 mm
Bolt hole spacing	axb	105x80 mm
Fixing bolt diameter	g	M10
Offset	F	49 mm
Load Capacity		200 kg
