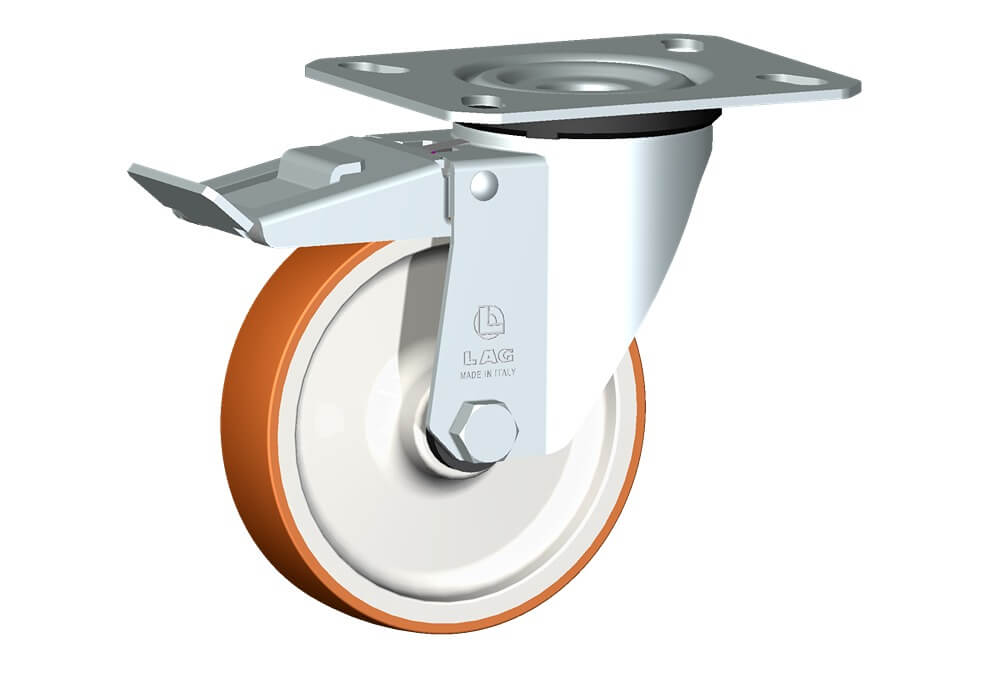

WHEEL N 125X30/40 RB SWIVEL FORK M22/50 + BRAKE

WHEEL N 125X30/40 RB SWIVEL FORK M22/50 + BRAKE

22033FR

Enquire Now

Wheels with injected polyurethane coating 58 Sh.D on polyamide 6 center. Available with standard shielded or stainless steel sealed precision ball bearings; standard or stainless steel roller bearings; plain bore.Wheel fitted with standard roller bearing.

View full details
Wheel diameterD125 mm
Tyre widthE30 mm
Overall heightH159 mm
Top plate outer dimensionsAxB135x110 mm
Bolt hole spacingaxb96x56 mm
Bolt hole spacingaxb105x75 mm
Bolt hole spacingaxb105x80 mm
Fixing bolt diametergM10
OffsetF49 mm
Load Capacity200 kg
