LAG

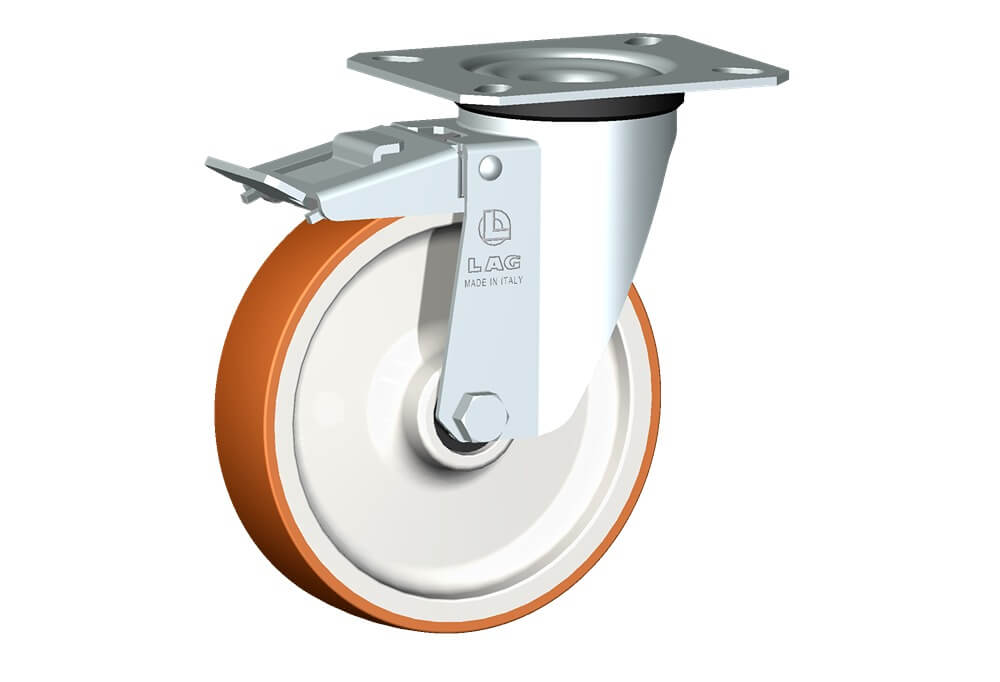

WHEEL N 125X30/40 RB SWIVEL FORK M22/40 + BRAKE

WHEEL N 125X30/40 RB SWIVEL FORK M22/40 + BRAKE

22031FR

Enquire Now

Wheels with injected polyurethane coating 58 Sh.D on polyamide 6 center. Available with standard shielded or stainless steel sealed precision ball bearings; standard or stainless steel roller bearings; plain bore.Wheel fitted with standard roller bearing.

View full details
Wheel diameterD125 mm
Tyre widthE30 mm
Overall heightH153 mm
Top plate outer dimensionsAxB102x83 mm
Bolt hole spacingaxb76x55 mm
Bolt hole spacingaxb80x60 mm
Fixing bolt diametergM8
OffsetF40 mm
Load Capacity120 kg
