LAG

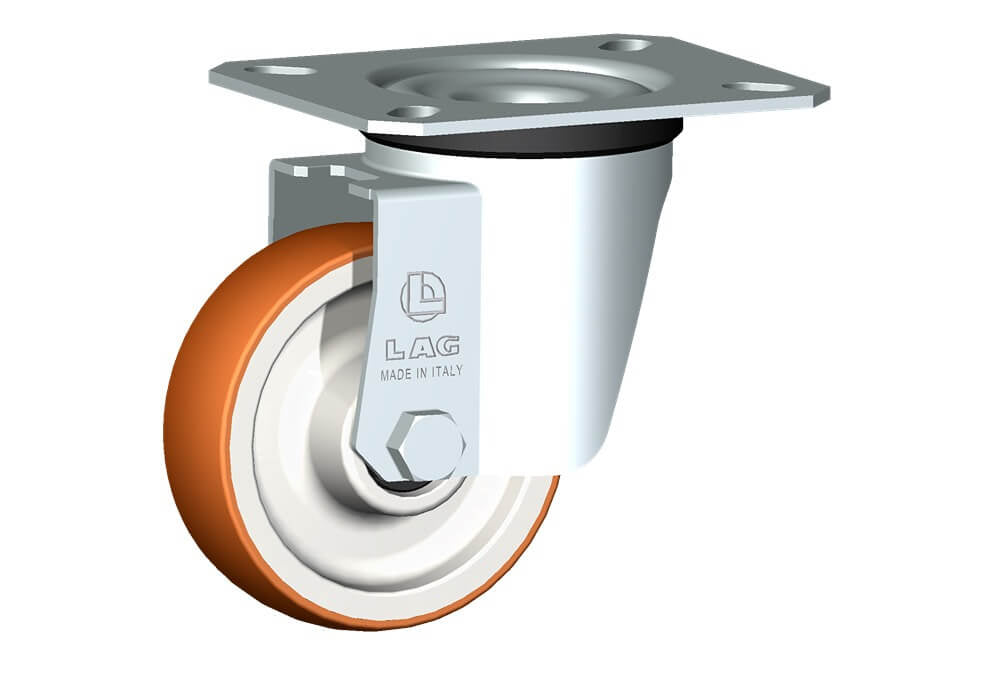

WHEEL N80X25/40 RB SWIVEL FORK M22

WHEEL N80X25/40 RB SWIVEL FORK M22

22027

Enquire Now

Wheels with injected polyurethane coating 58 Sh.D on polyamide 6 center. Available with standard shielded or stainless steel sealed precision ball bearings; standard or stainless steel roller bearings; plain bore.Wheel fitted with standard roller bearing.

View full details
Wheel diameterD80 mm
Tyre widthE25 mm
Overall heightH106 mm
Top plate outer dimensionsAxB102x83 mm
Bolt hole spacingaxb76x55 mm
Bolt hole spacingaxb80x60 mm
Fixing bolt diametergM8
OffsetF33 mm
Load Capacity100 kg
