LAG

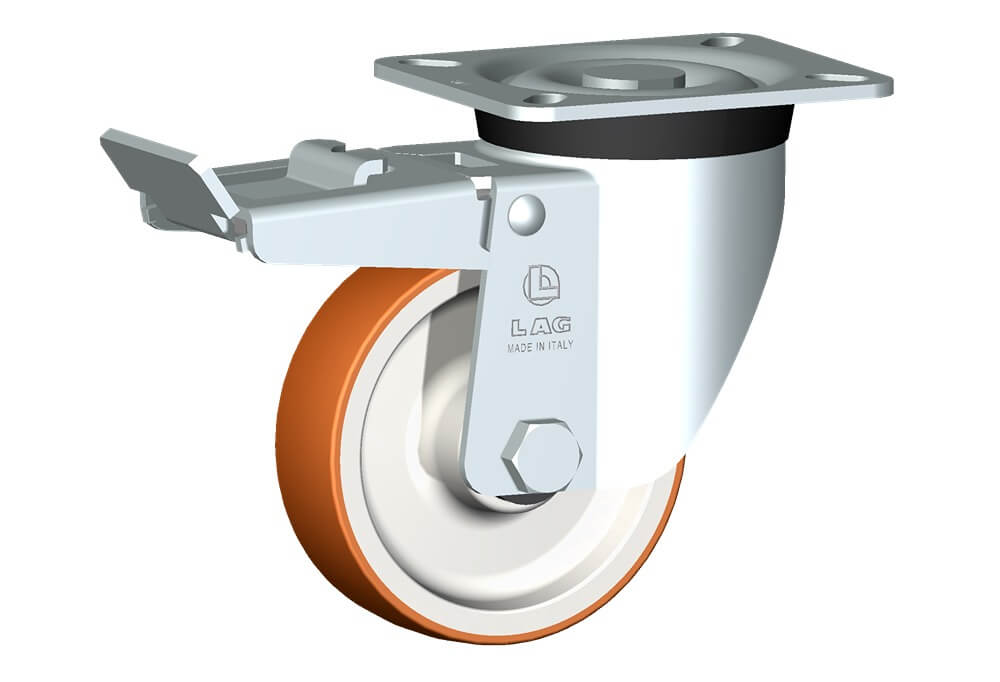

WHEEL N 100X30/40 ROLLER BEARING SWIVEL FORK M40L/50 + BRAKE

WHEEL N 100X30/40 ROLLER BEARING SWIVEL FORK M40L/50 + BRAKE

21628FR

Enquire Now

Wheels with injected polyurethane coating 58 Sh.D on polyamide 6 center. Available with standard shielded or stainless steel sealed precision ball bearings; standard or stainless steel roller bearings; plain bore.Wheel fitted with standard roller bearing.

View full details
Wheel diameterD100 mm
Tyre widthE30 mm
Overall heightH137 mm
Top plate outer dimensionsAxB105x85 mm
Bolt hole spacingaxb76x55 mm
Bolt hole spacingaxb80x60 mm
Fixing bolt diametergM8
OffsetF41 mm
Load Capacity160 kg
