LAG

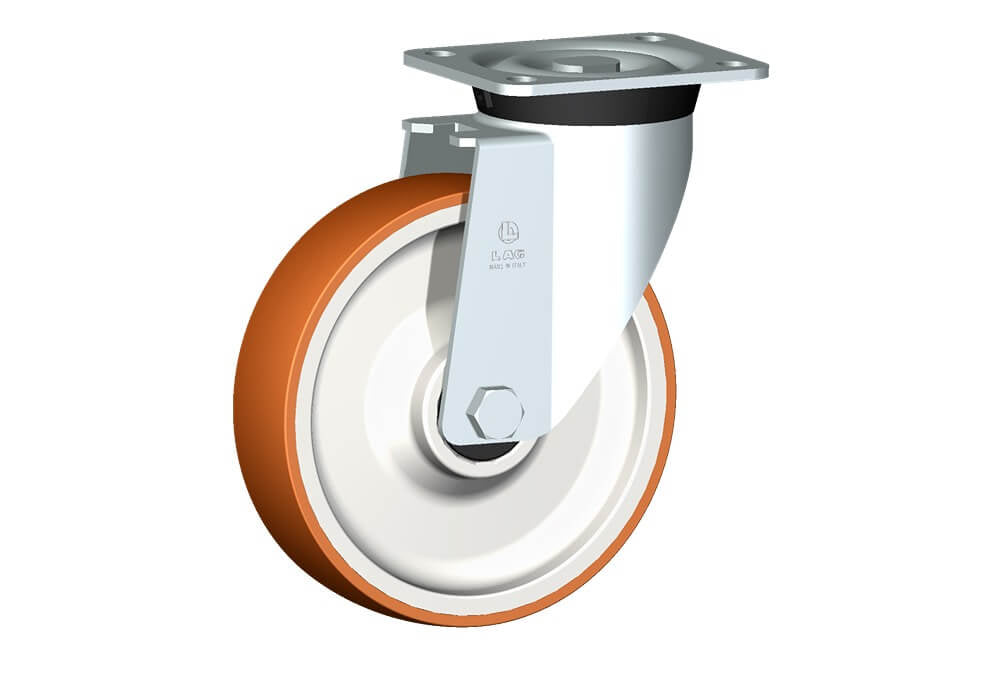

WHEEL N 200X50/60 BB SWIVEL FORK M40

WHEEL N 200X50/60 BB SWIVEL FORK M40

21621

Enquire Now

Wheels with injected polyurethane coating 58 Sh.D on polyamide 6 center. Available with standard shielded or stainless steel sealed precision ball bearings; standard or stainless steel roller bearings; plain bore.Wheel fitted with ball bearings.

View full details
Wheel diameterD200 mm
Tyre widthE50 mm
Outer faces bearings distanceV54 mm
Overall heightH249 mm
Top plate outer dimensionsAxB135x110 mm
Bolt hole spacingaxb105x75 mm
Bolt hole spacingaxb105x80 mm
Fixing bolt diametergM12
OffsetF65 mm
Load Capacity450 kg
