LAG

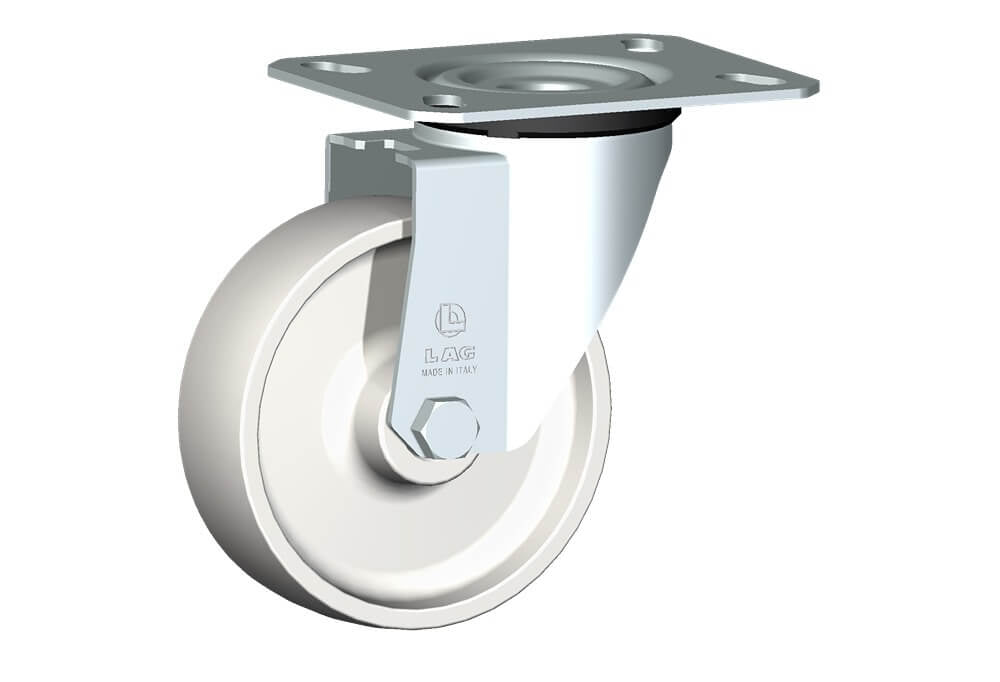

WHEEL P 125X40/50 PLAIN BORE SWIVEL FORK M22

WHEEL P 125X40/50 PLAIN BORE SWIVEL FORK M22

18768

Enquire Now

Monolitic polyammide 6 wheels available with standard shielded or stainless steel precision ball bearings; standard or stainless steel roller bearing; plain bore.Plain bore wheel.

View full details
Wheel diameterD125 mm
Tyre widthE40 mm
Overall heightH159 mm
Top plate outer dimensionsAxB135x110 mm
Bolt hole spacingaxb96x56 mm
Bolt hole spacingaxb105x75 mm
Bolt hole spacingaxb105x80 mm
Fixing bolt diametergM10
OffsetF49 mm
Load Capacity200 kg
