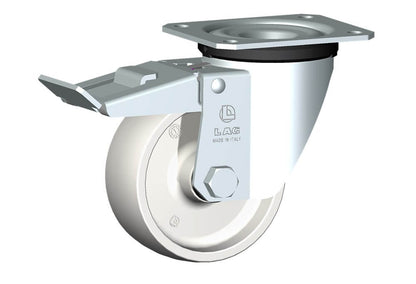

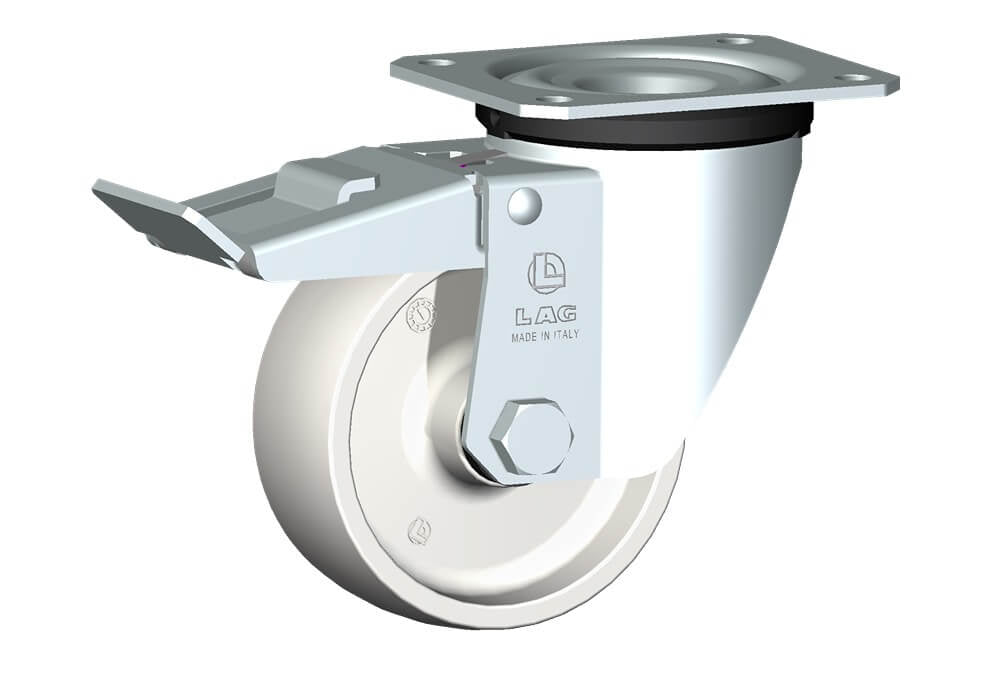

WHEEL P 100X40/40 PLAIN BORE SWIVEL FORK M22L/50 + BRAKE

Name: WHEEL P 100X40/40 PLAIN BORE SWIVEL FORK M22L/50 + BRAKE
Brand: LAG
SKU: 18763FR
Availability: InStock

WHEEL P 100X40/40 PLAIN BORE SWIVEL FORK M22L/50 + BRAKE

SKU:18763FR

Enquire Now

Monolitic polyammide 6 wheels available with standard shielded or stainless steel precision ball bearings; standard or stainless steel roller bearing; plain bore.Plain bore wheel.

View full details

Wheel diameter	D	100 mm
Tyre width	E	40 mm
Overall height	H	129 mm
Top plate outer dimensions	AxB	102x83 mm
Bolt hole spacing	axb	80x60 mm
Fixing bolt diameter	g	M8
Offset	F	46 mm
Load Capacity		200 kg
