LAG

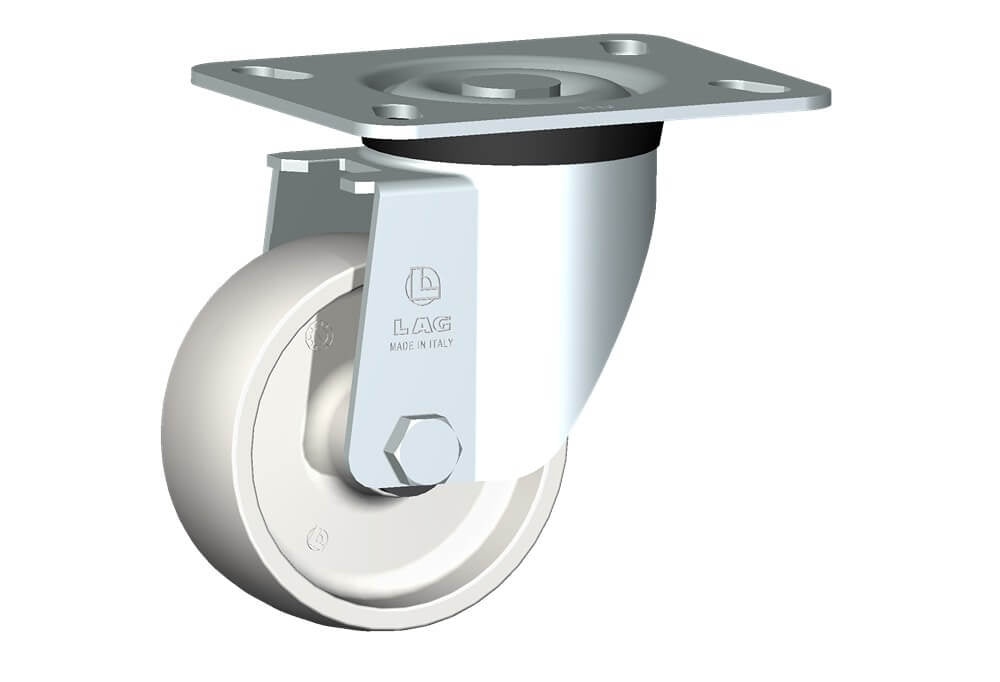

WHEEL P 100X40/40 PLAIN BORE SWIVEL FORK M40/50

Name: WHEEL P 100X40/40 PLAIN BORE SWIVEL FORK M40/50
Brand: LAG
SKU: 17654
Availability: InStock

WHEEL P 100X40/40 PLAIN BORE SWIVEL FORK M40/50

SKU:17654

Monolitic polyammide 6 wheels available with standard shielded or stainless steel precision ball bearings; standard or stainless steel roller bearing; plain bore.Plain bore wheel.

View full details

Wheel diameter	D	100 mm
Tyre width	E	40 mm
Overall height	H	137 mm
Top plate outer dimensions	AxB	135x110 mm
Bolt hole spacing	axb	96x56 mm
Bolt hole spacing	axb	105x75 mm
Bolt hole spacing	axb	105x80 mm
Fixing bolt diameter	g	M10
Offset	F	41 mm
Load Capacity		250 kg
