LAG

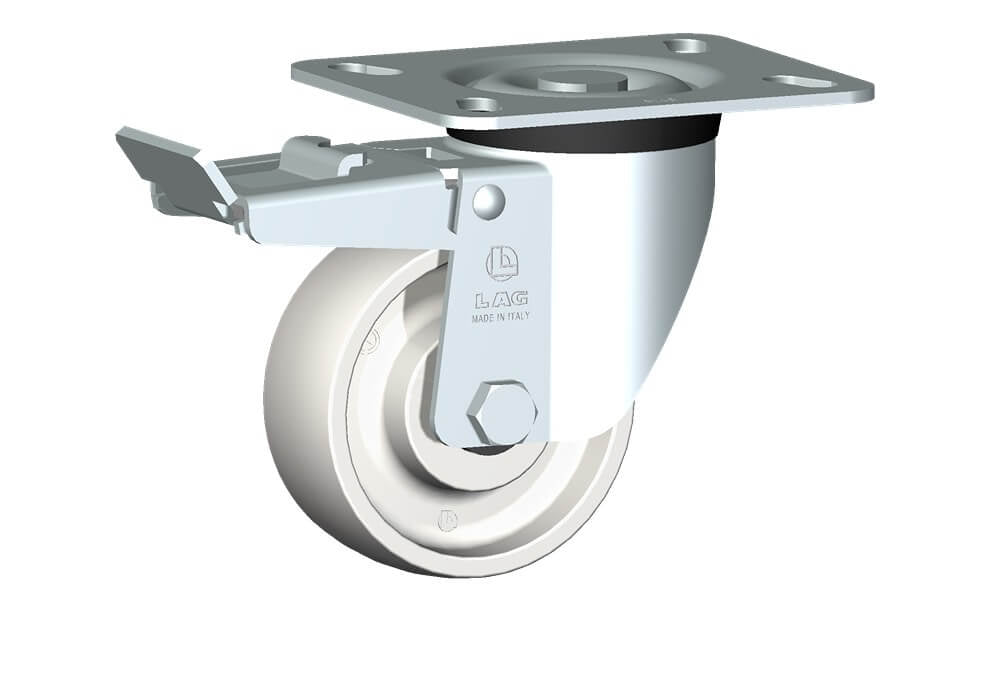

WHEEL P 100X40/40 ROLLER BRGS. SWIVEL FORK M40/50 + BRAKE

WHEEL P 100X40/40 ROLLER BRGS. SWIVEL FORK M40/50 + BRAKE

17629FR

Enquire Now

Monolitic polyammide 6 wheels available with standard shielded or stainless steel precision ball bearings; standard or stainless steel roller bearing; plain bore.Wheel fitted with standard roller bearing.

View full details
Wheel diameterD100 mm
Tyre widthE40 mm
Overall heightH137 mm
Top plate outer dimensionsAxB135x110 mm
Bolt hole spacingaxb96x56 mm
Bolt hole spacingaxb105x75 mm
Bolt hole spacingaxb105x80 mm
Fixing bolt diametergM10
OffsetF41 mm
Load Capacity250 kg
