LAG

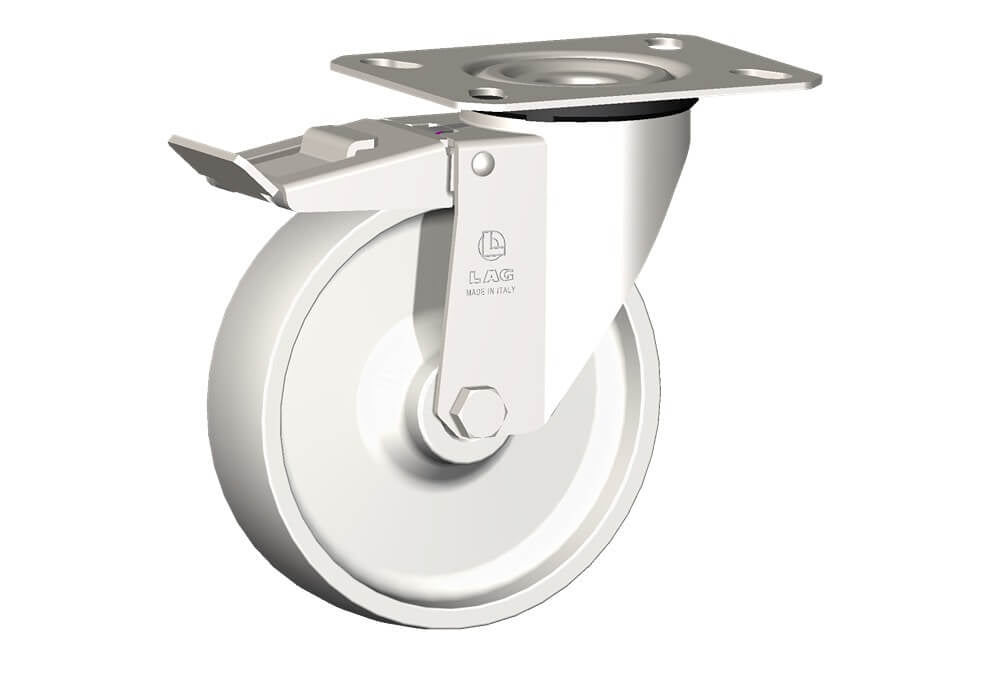

WHEEL P 150X40/50 PLAIN BORE SWIVEL X20 + BRAKE

Name: WHEEL P 150X40/50 PLAIN BORE SWIVEL X20 + BRAKE
Brand: LAG
SKU: 17136FR
Availability: InStock

WHEEL P 150X40/50 PLAIN BORE SWIVEL X20 + BRAKE

SKU:17136FR

Monolitic polyammide 6 wheels available with standard shielded or stainless steel precision ball bearings; standard or stainless steel roller bearing; plain bore.Plain bore wheel.

View full details

Wheel diameter	D	150 mm
Tyre width	E	40 mm
Overall height	H	181 mm
Top plate outer dimensions	AxB	135x110 mm
Bolt hole spacing	axb	96x56 mm
Bolt hole spacing	axb	105x75 mm
Bolt hole spacing	axb	105x80 mm
Fixing bolt diameter	g	M10
Offset	F	51 mm
Load Capacity		250 kg
