LAG

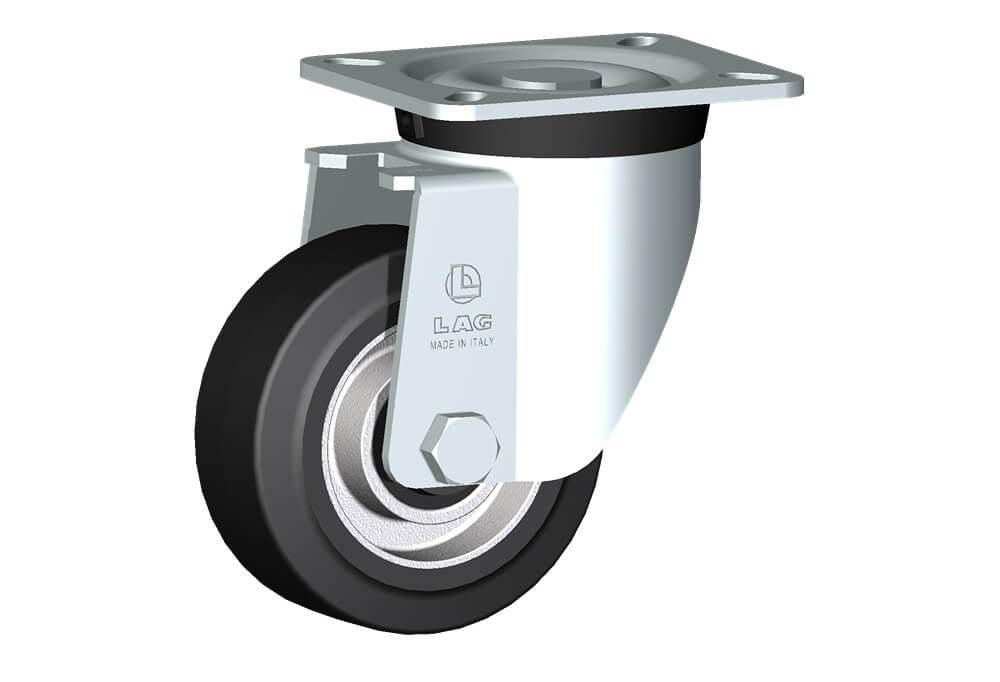

WHEEL E 100X40/40 RB SWIVEL FORK P60L/50

WHEEL E 100X40/40 RB SWIVEL FORK P60L/50

16878

Enquire Now

Wheels with elastic solid rubber tyre bonded to die-cast aluminum centre. Available with ball bearings or roller bearings.Wheel fitted with standard roller bearing.

View full details
Wheel diameterD100 mm
Tyre widthE40 mm
Overall heightH137 mm
Top plate outer dimensionsAxB105x85 mm
Bolt hole spacingaxb76x55 mm
Bolt hole spacingaxb80x60 mm
Fixing bolt diametergM8
OffsetF42 mm
Load Capacity150 kg
