LAG

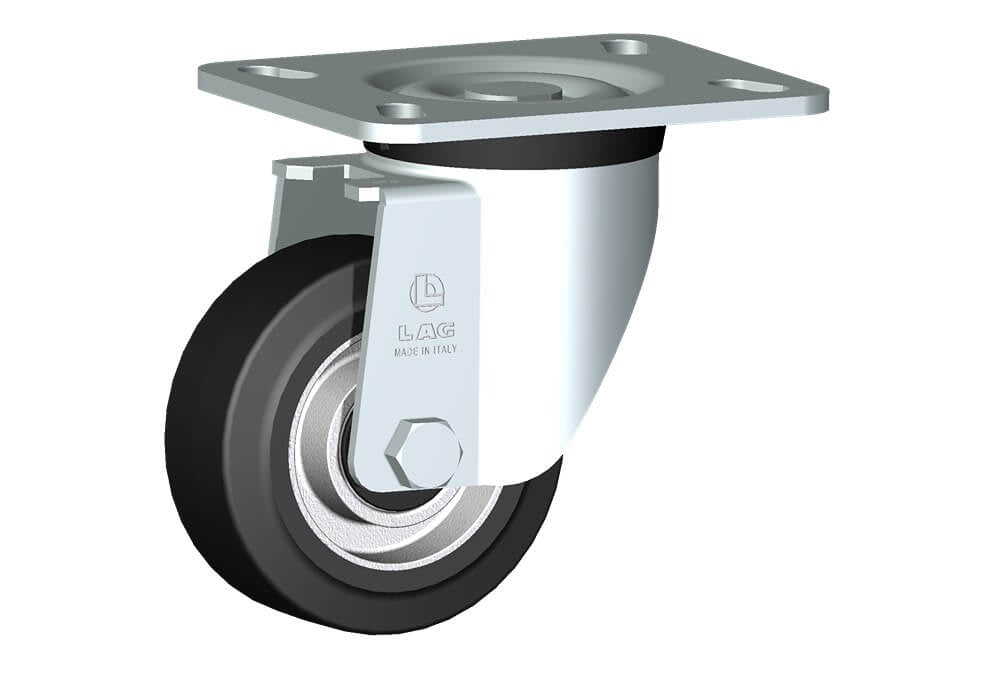

WHEEL E 100X40/40 BB SWIVEL FORK P60/50

Name: WHEEL E 100X40/40 BB SWIVEL FORK P60/50
Brand: LAG
SKU: 16854
Availability: InStock

WHEEL E 100X40/40 BB SWIVEL FORK P60/50

SKU:16854

Wheels with elastic solid rubber tyre bonded to die-cast aluminum centre. Available with ball bearings or roller bearings.Wheel fitted with ball bearings.

View full details

Wheel diameter	D	100 mm
Tyre width	E	40 mm
Outer faces bearings distance	V	38 mm
Overall height	H	137 mm
Top plate outer dimensions	AxB	135x110 mm
Bolt hole spacing	axb	96x56 mm
Bolt hole spacing	axb	105x75 mm
Bolt hole spacing	axb	105x80 mm
Fixing bolt diameter	g	M10
Offset	F	42 mm
Load Capacity		150 kg
