LAG

WHEEL E 100X40/40 RB FIXED FORK M40/50

Name: WHEEL E 100X40/40 RB FIXED FORK M40/50
Brand: LAG
SKU: 16704
Availability: InStock

WHEEL E 100X40/40 RB FIXED FORK M40/50

SKU:16704

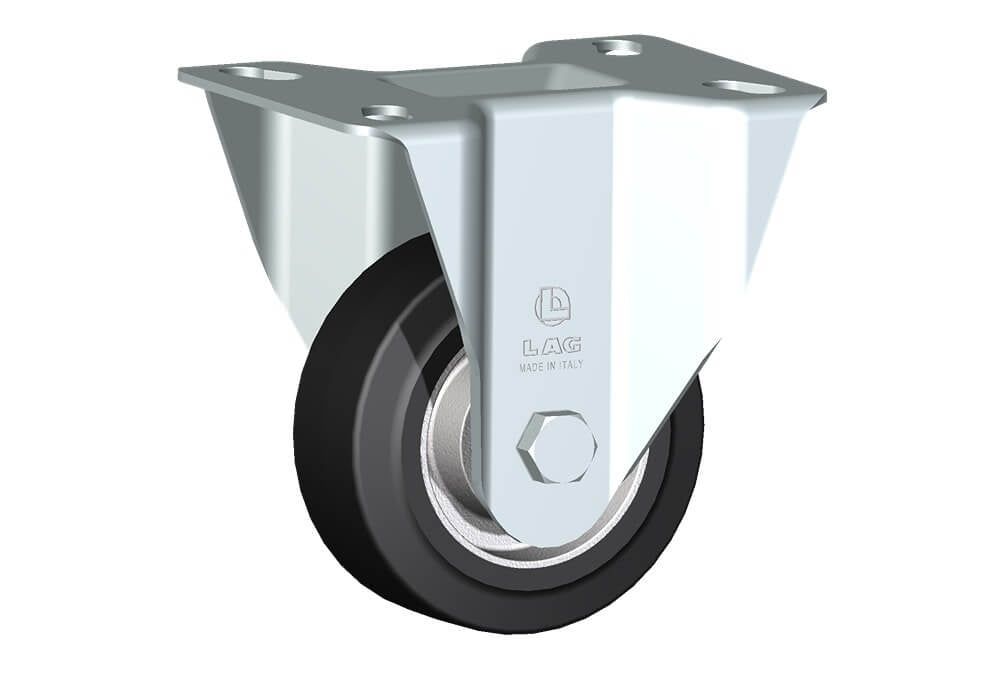

Wheels with elastic solid rubber tyre bonded to die-cast aluminum centre. Available with ball bearings or roller bearings.Wheel fitted with standard roller bearing.

View full details

Wheel diameter	D	100 mm
Tyre width	E	40 mm
Overall height	H	137 mm
Top plate outer dimensions	AxB	135x110 mm
Bolt hole spacing	axb	96x56 mm
Bolt hole spacing	axb	105x75 mm
Bolt hole spacing	axb	105x80 mm
Fixing bolt diameter	g	M10
Load Capacity		150 kg
