LAG

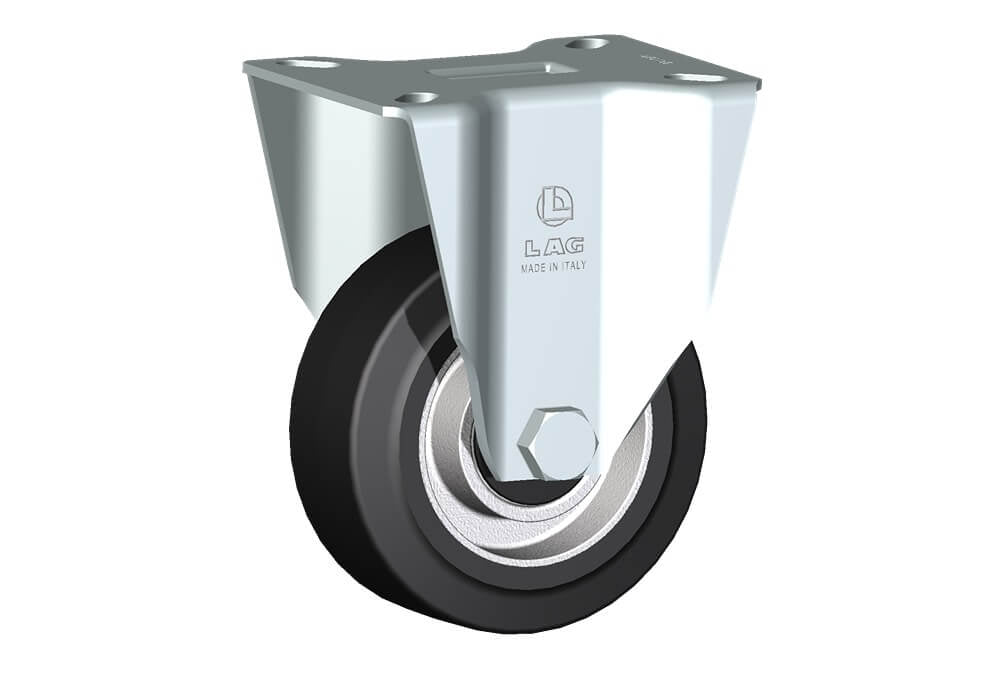

WHEEL E 100X40/40 BB FIXED FORK M40L/50

Name: WHEEL E 100X40/40 BB FIXED FORK M40L/50
Brand: LAG
SKU: 16678
Availability: InStock

WHEEL E 100X40/40 BB FIXED FORK M40L/50

SKU:16678

Wheels with elastic solid rubber tyre bonded to die-cast aluminum centre. Available with ball bearings or roller bearings.Wheel fitted with ball bearings.

View full details

Wheel diameter	D	100 mm
Tyre width	E	40 mm
Outer faces bearings distance	V	38 mm
Overall height	H	137 mm
Top plate outer dimensions	AxB	105x85 mm
Bolt hole spacing	axb	76x55 mm
Bolt hole spacing	axb	80x60 mm
Fixing bolt diameter	g	M8
Load Capacity		150 kg
