LAG

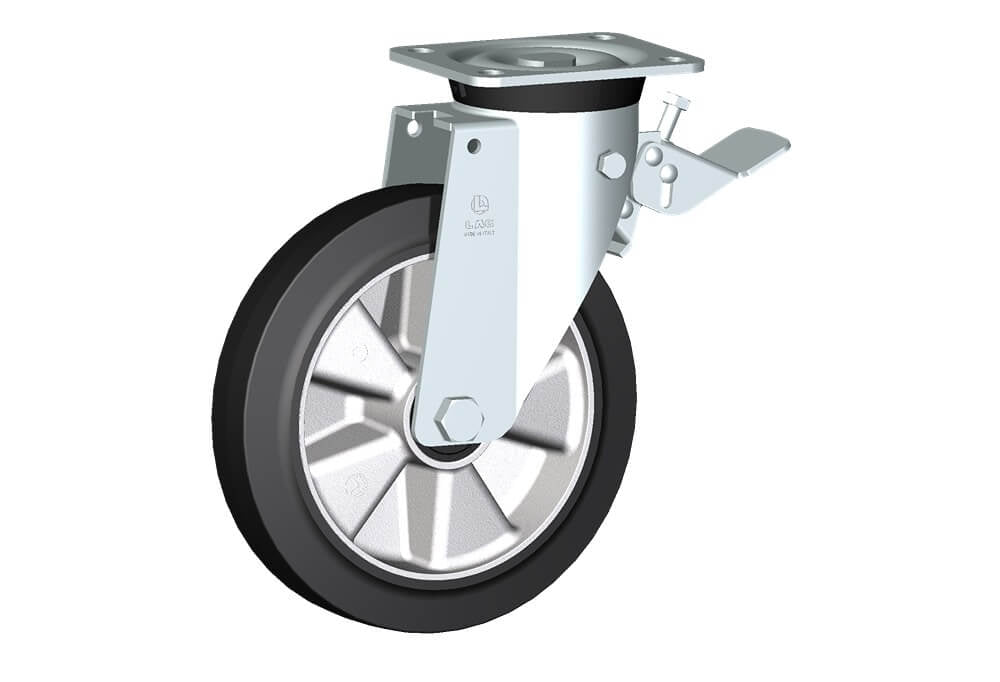

WHEEL E 230X50/60 RB SWIVEL FORK M40 + BRAKE

Name: WHEEL E 230X50/60 RB SWIVEL FORK M40 + BRAKE
Brand: LAG
SKU: 16648FV
Availability: InStock

WHEEL E 230X50/60 RB SWIVEL FORK M40 + BRAKE

SKU:16648FV

Wheels with elastic solid rubber tyre bonded to die-cast aluminum centre. Available with ball bearings or roller bearings.Wheel fitted with standard roller bearing.

View full details

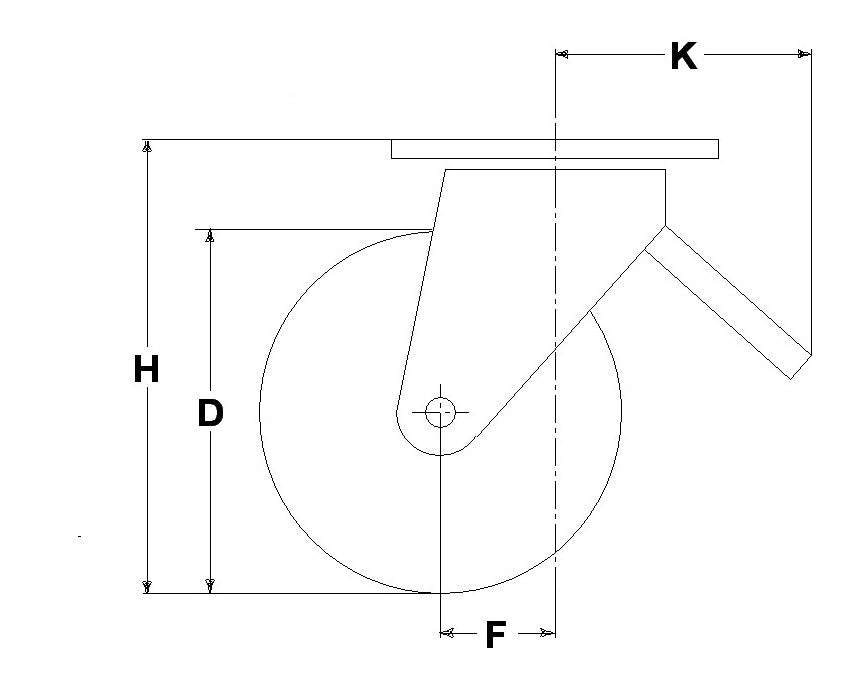

Wheel diameter	D	230 mm
Tyre width	E	50 mm
Overall height	H	294 mm

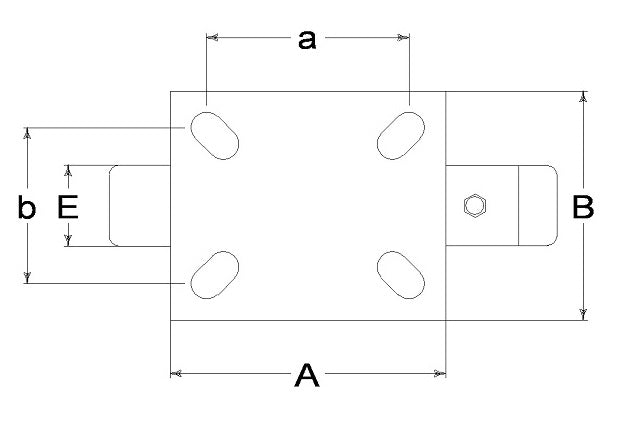

Top plate outer dimensions	AxB	135x110 mm
Bolt hole spacing	axb	105x75 mm
Bolt hole spacing	axb	105x80 mm
Fixing bolt diameter	g	M12
Offset	F	69 mm
Load Capacity		450 kg
