LAG

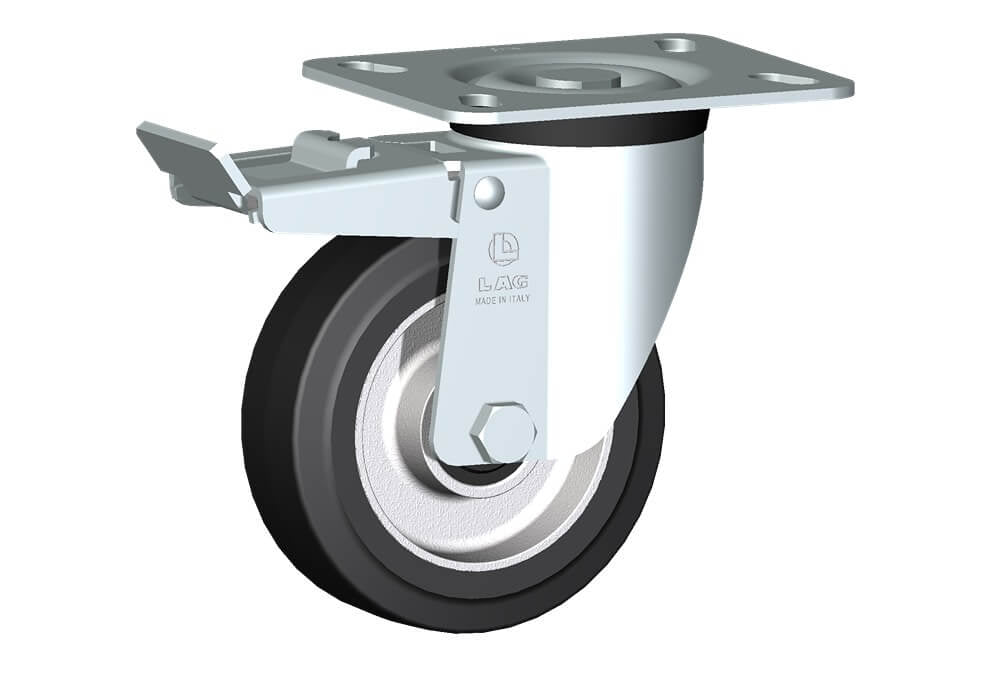

WHEEL E 125X40/40 RB SWIVEL FORK M40/50 + BRAKE

WHEEL E 125X40/40 RB SWIVEL FORK M40/50 + BRAKE

16634FR

Enquire Now

Wheels with elastic solid rubber tyre bonded to die-cast aluminum centre. Available with ball bearings or roller bearings.Wheel fitted with standard roller bearing.

View full details
Wheel diameterD125 mm
Tyre widthE40 mm
Overall heightH162 mm
Top plate outer dimensionsAxB135x110 mm
Bolt hole spacingaxb96x56 mm
Bolt hole spacingaxb105x75 mm
Bolt hole spacingaxb105x80 mm
Fixing bolt diametergM10
OffsetF41 mm
Load Capacity180 kg
