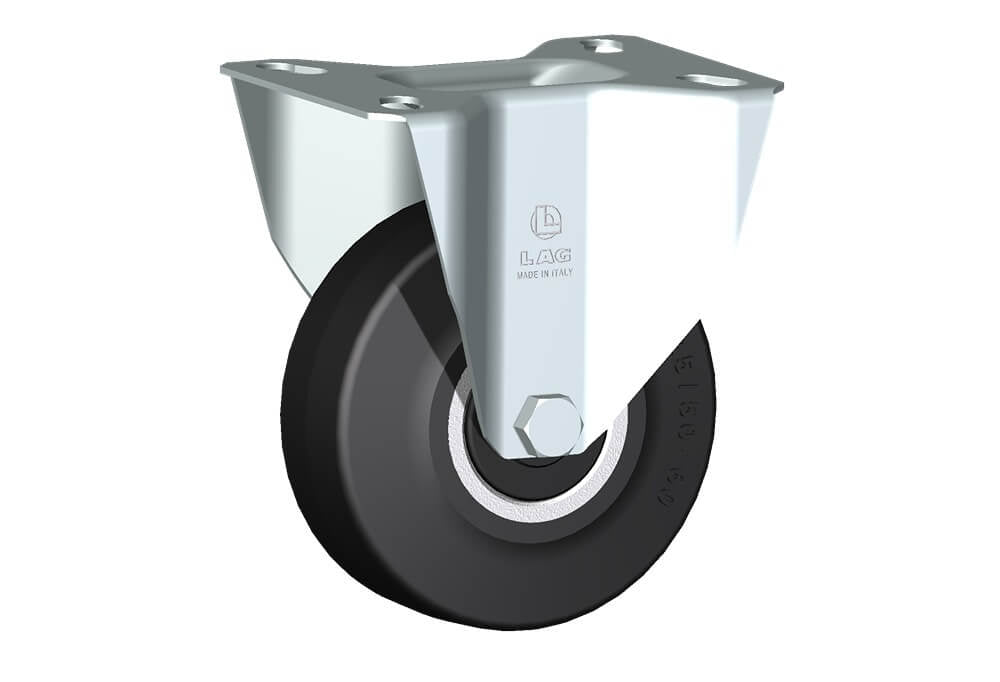

WHEEL E 125X50/50 BALL BEARING FIXED FORK M22/50

WHEEL E 125X50/50 BALL BEARING FIXED FORK M22/50

16355

Enquire Now

Wheels with elastic solid rubber tyre bonded to die-cast aluminum centre. Available with ball bearings or roller bearings.Wheel fitted with ball bearings.Steel hub.

View full details
Wheel diameterD125 mm
Tyre widthE50 mm
Outer faces bearings distanceV44 mm
Overall heightH159 mm
Top plate outer dimensionsAxB135x110 mm
Bolt hole spacingaxb96x56 mm
Bolt hole spacingaxb105x75 mm
Bolt hole spacingaxb105x80 mm
Fixing bolt diametergM10
Load Capacity200 kg
