LAG

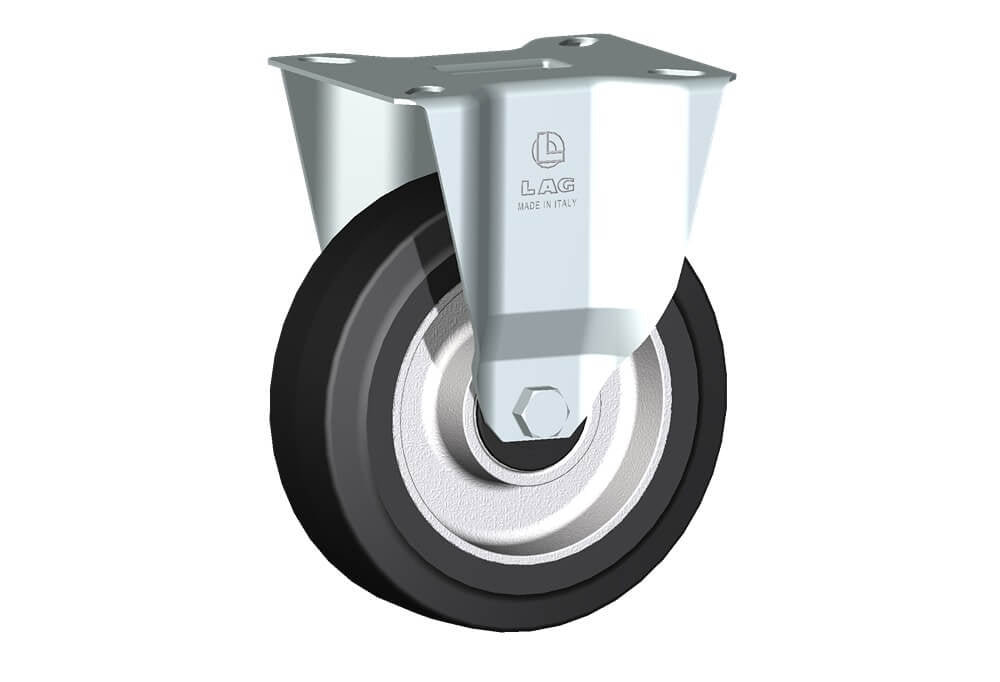

WHEEL E 125X40/40 BALL BEARING FIXED FORK M22/40

WHEEL E 125X40/40 BALL BEARING FIXED FORK M22/40

16353

Enquire Now

Wheels with elastic solid rubber tyre bonded to die-cast aluminum centre. Available with ball bearings or roller bearings.Wheel fitted with ball bearings.

View full details
Wheel diameterD125 mm
Tyre widthE40 mm
Outer faces bearings distanceV38 mm
Overall heightH153 mm
Top plate outer dimensionsAxB102x83 mm
Bolt hole spacingaxb76x55 mm
Bolt hole spacingaxb80x60 mm
Fixing bolt diametergM8
Load Capacity120 kg
