LAG

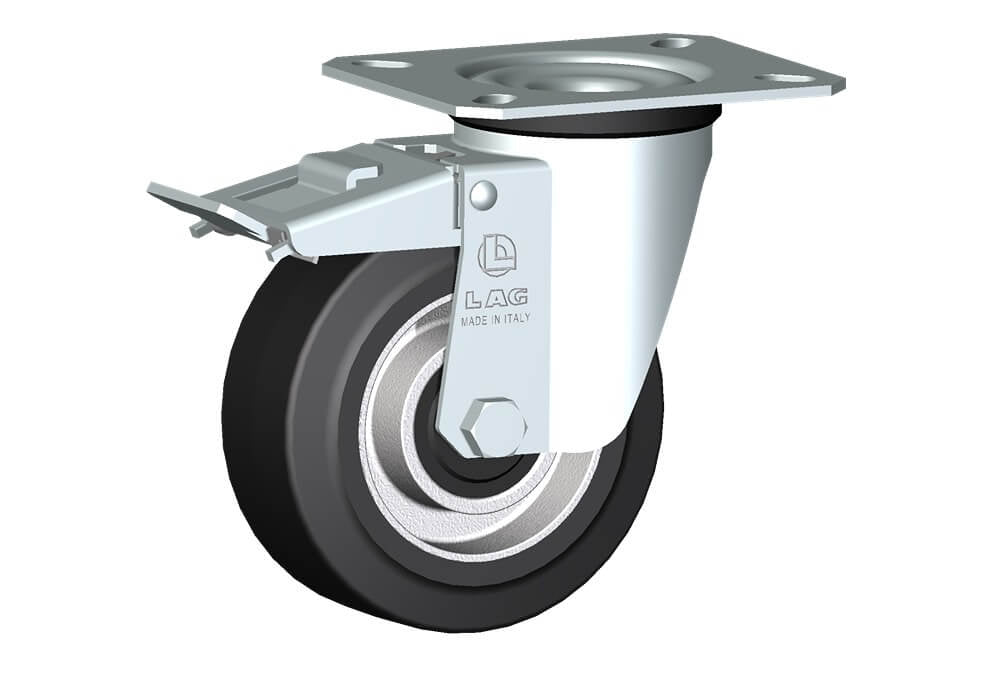

WHEEL E 100X40/40 RB SWIVEL FORK M22 + BRAKE

Name: WHEEL E 100X40/40 RB SWIVEL FORK M22 + BRAKE
Brand: LAG
SKU: 16327FR
Availability: InStock

WHEEL E 100X40/40 RB SWIVEL FORK M22 + BRAKE

SKU:16327FR

Wheels with elastic solid rubber tyre bonded to die-cast aluminum centre. Available with ball bearings or roller bearings.Wheel fitted with standard roller bearing.

View full details

Wheel diameter	D	100 mm
Tyre width	E	40 mm
Overall height	H	128 mm
Top plate outer dimensions	AxB	102x83 mm
Bolt hole spacing	axb	76x55 mm
Bolt hole spacing	axb	80x60 mm
Fixing bolt diameter	g	M8
Offset	F	37 mm
Load Capacity		120 kg
