LAG

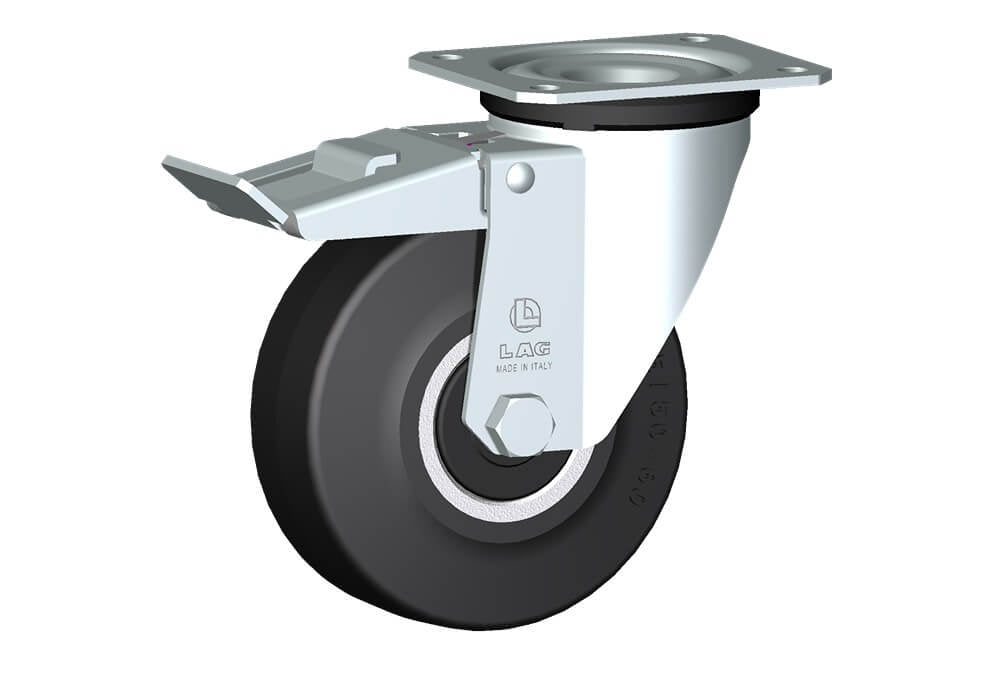

WHEEL E 125X50/50 BB SWIVEL FORK M22L/50 + BRAKE

Name: WHEEL E 125X50/50 BB SWIVEL FORK M22L/50 + BRAKE
Brand: LAG
SKU: 16304FR
Availability: InStock

WHEEL E 125X50/50 BB SWIVEL FORK M22L/50 + BRAKE

SKU:16304FR

Wheels with elastic solid rubber tyre bonded to die-cast aluminum centre. Available with ball bearings or roller bearings.Wheel fitted with ball bearings.Steel hub.

View full details

Wheel diameter	D	125 mm
Tyre width	E	50 mm
Outer faces bearings distance	V	44 mm
Overall height	H	159 mm
Top plate outer dimensions	AxB	102x83 mm
Bolt hole spacing	axb	80x60 mm
Fixing bolt diameter	g	M8
Offset	F	49 mm
Load Capacity		200 kg
