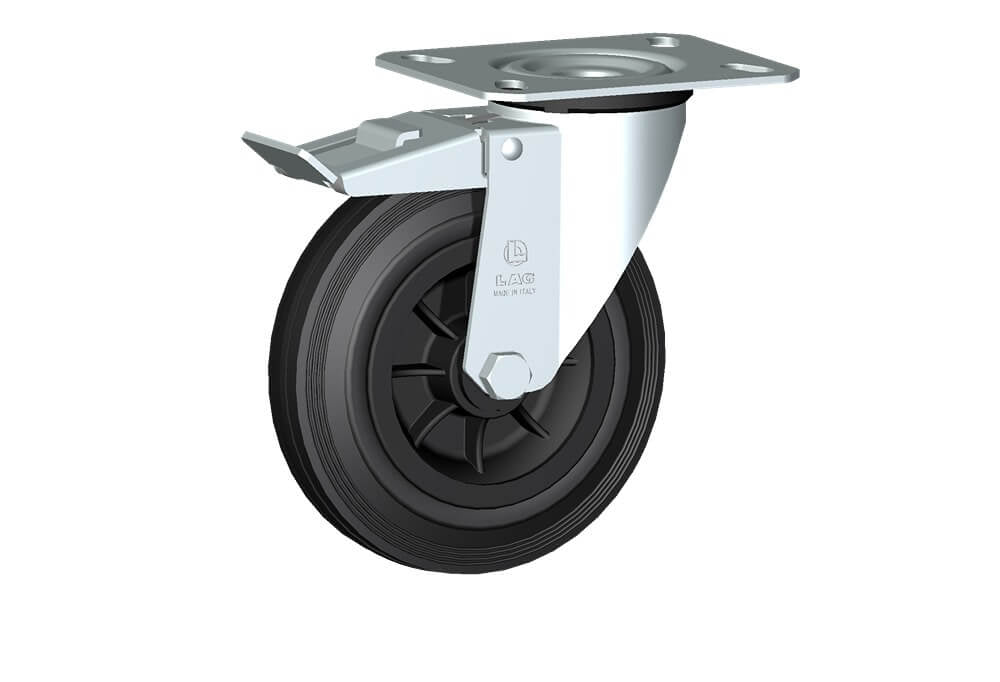

WHEEL D 160X40/50 NYLON BEARING SWIVEL FORK M22/50 + BRAKE

WHEEL D 160X40/50 NYLON BEARING SWIVEL FORK M22/50 + BRAKE

13926FR

Enquire Now

Wheels with black rubber ring on thermoplastic core, available with roller bearings or nylon friction bearings.The wheel is fitted with bushes.

View full details
Wheel diameterD160 mm
Tyre widthE40 mm
Overall heightH191 mm
Top plate outer dimensionsAxB135x110 mm
Bolt hole spacingaxb96x56 mm
Bolt hole spacingaxb105x75 mm
Bolt hole spacingaxb105x80 mm
Fixing bolt diametergM10
OffsetF51 mm
Load Capacity135 kg
