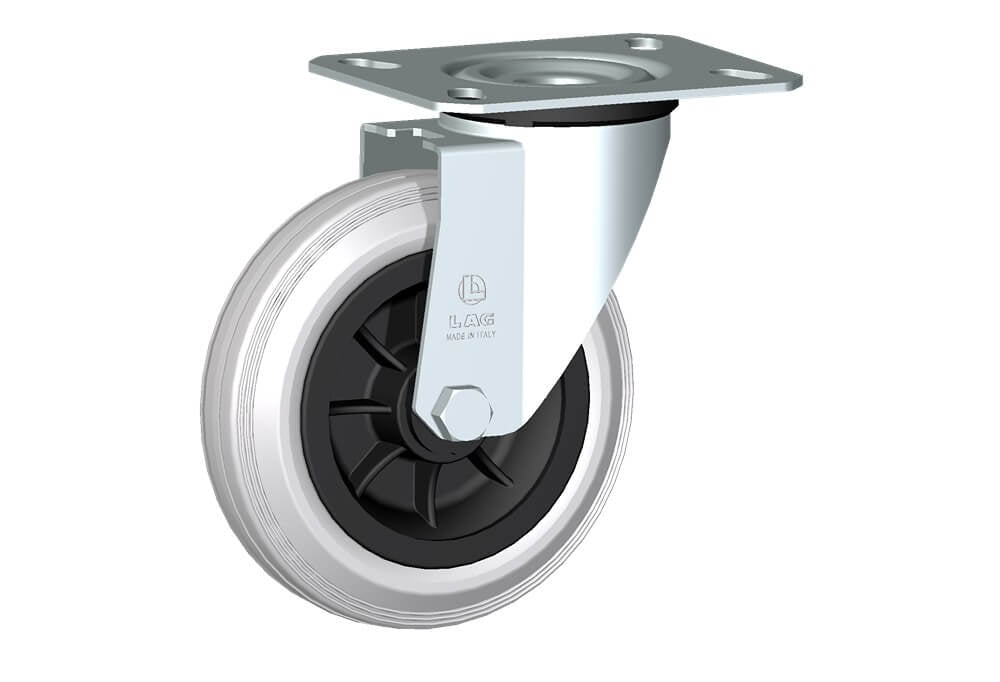

WHEEL DG 150X40/50 NYLONPLAIN BORE SWIVEL FORK M22

WHEEL DG 150X40/50 NYLONPLAIN BORE SWIVEL FORK M22

13922G

Enquire Now

Wheels with elastic grey rubber ring on a thermoplastic core, with standard or stainless steel roller bearings or nylon friction bearings.The wheel is fitted with bushes.

View full details
Wheel diameterD150 mm
Tyre widthE40 mm
Overall heightH181 mm
Top plate outer dimensionsAxB135x110 mm
Bolt hole spacingaxb96x56 mm
Bolt hole spacingaxb105x75 mm
Bolt hole spacingaxb105x80 mm
Fixing bolt diametergM10
OffsetF51 mm
Load Capacity150 kg
