1 3

LAG

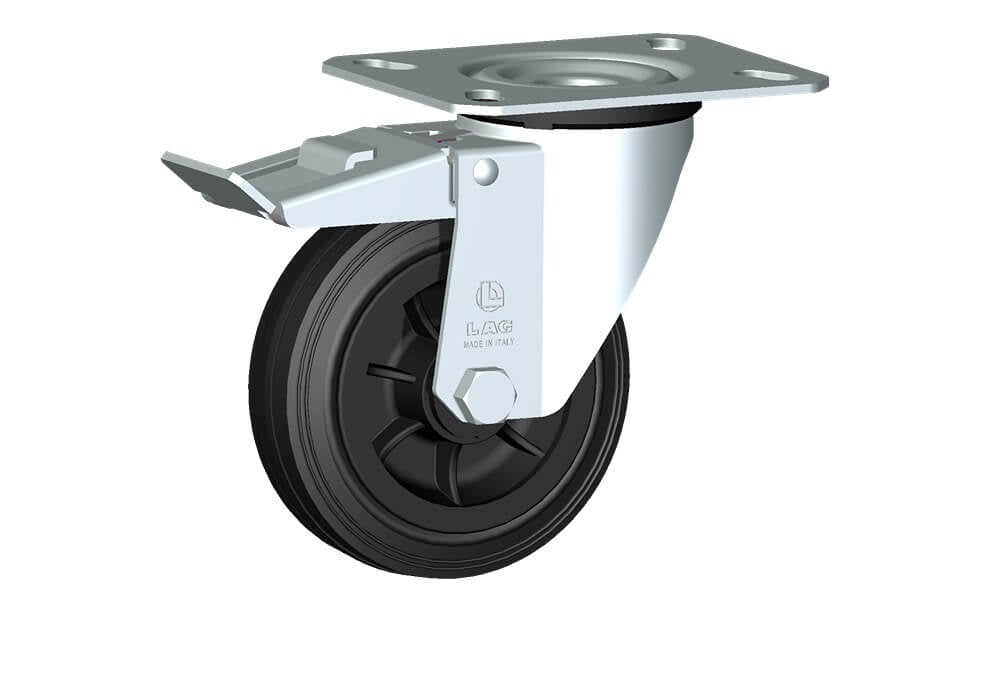

WHEEL D 125X37,5/50 NYLON BEARING SWIVEL FORK M22/50 + BRAKE

WHEEL D 125X37,5/50 NYLON BEARING SWIVEL FORK M22/50 + BRAKE

13914FR

Enquire Now

Wheels with black rubber ring on thermoplastic core, available with roller bearings or nylon friction bearings.The wheel is fitted with bushes.

View full details
Wheel diameterD125 mm
Tyre widthE38 mm
Overall heightH159 mm
Top plate outer dimensionsAxB135x110 mm
Bolt hole spacingaxb96x56 mm
Bolt hole spacingaxb105x75 mm
Bolt hole spacingaxb105x80 mm
Fixing bolt diametergM10
OffsetF49 mm
Load Capacity100 kg
