WHEEL D 160X40/50 RB SWIVEL FORK M22

Name: WHEEL D 160X40/50 RB SWIVEL FORK M22
Brand: LAG
SKU: 13876
Availability: InStock

WHEEL D 160X40/50 RB SWIVEL FORK M22

SKU:13876

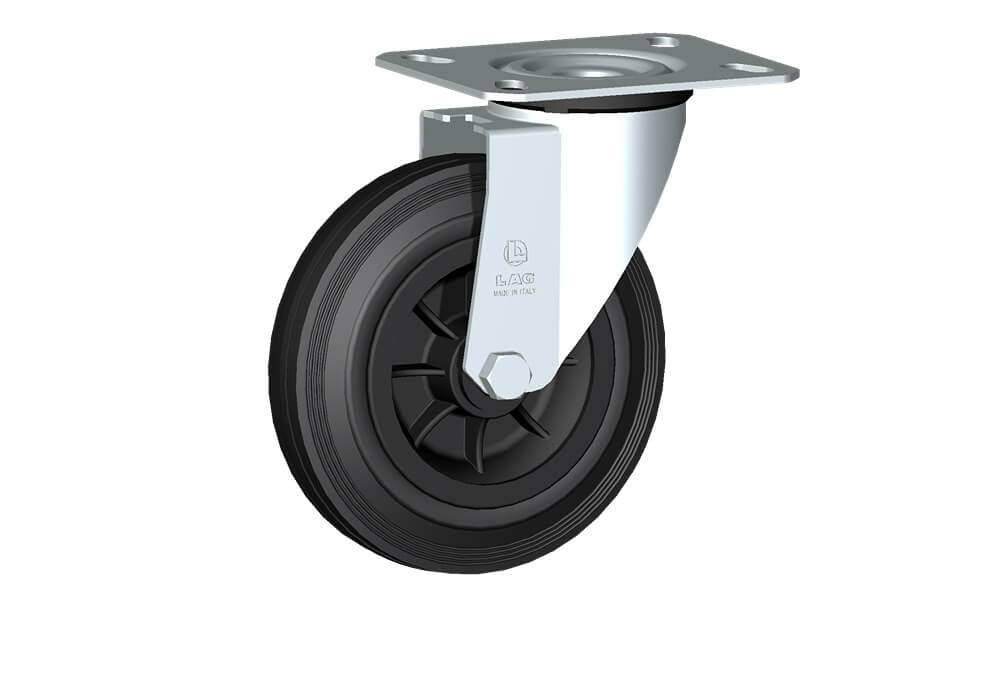

Wheels with black rubber ring on thermoplastic core, available with roller bearings or nylon friction bearings.Wheel fitted with standard roller bearing.

View full details

Wheel diameter	D	160 mm
Tyre width	E	40 mm
Overall height	H	191 mm
Top plate outer dimensions	AxB	135x110 mm
Bolt hole spacing	axb	96x56 mm
Bolt hole spacing	axb	105x75 mm
Bolt hole spacing	axb	105x80 mm
Fixing bolt diameter	g	M10
Offset	F	51 mm
Load Capacity		135 kg
