LAG

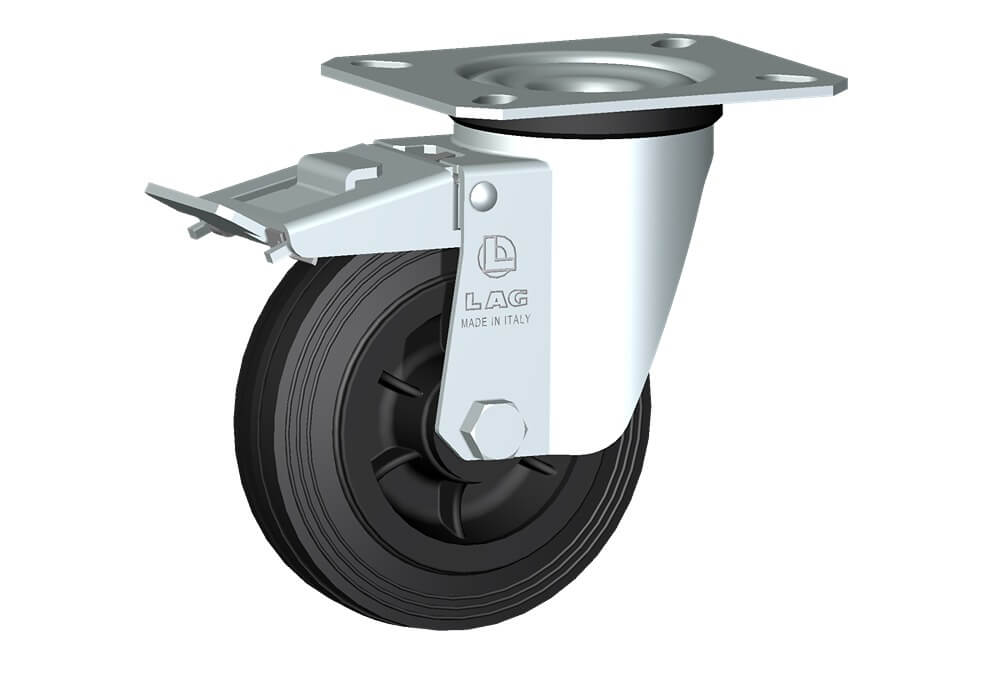

WHEEL D 100X30/40 RB SWIVEL FORK M22 + BRAKE

Name: WHEEL D 100X30/40 RB SWIVEL FORK M22 + BRAKE
Brand: LAG
SKU: 13858FR
Availability: InStock

WHEEL D 100X30/40 RB SWIVEL FORK M22 + BRAKE

SKU:13858FR

Wheels with black rubber ring on thermoplastic core, available with roller bearings or nylon friction bearings.Wheel fitted with standard roller bearing.

View full details

Wheel diameter	D	100 mm
Tyre width	E	30 mm
Overall height	H	128 mm
Top plate outer dimensions	AxB	102x83 mm
Bolt hole spacing	axb	76x55 mm
Bolt hole spacing	axb	80x60 mm
Fixing bolt diameter	g	M8
Offset	F	37 mm
Load Capacity		75 kg
